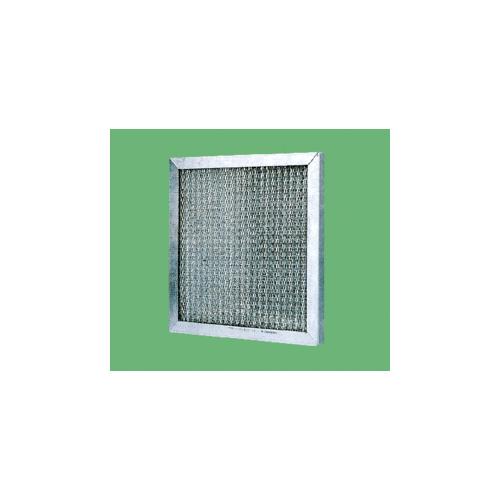

金属网初效过滤器
产品特性:
* 过滤介质为波浪型铝网和不锈钢扩张网加工而成；
* 捕集10μm以上的颗粒尘埃及各种悬浮物；
* 风量大，阻力小；
* 可重复清洗使用,使用寿命长，经济性极高；
用途:
用于中央空调过滤器初级过滤特殊耐酸、耐碱或高温之通风过滤系统，汽车总装车间的喷蜡房过滤
* There is a stainless steel wire inside enhancing the metal panel effect.
* Metal panel is featured with large airflow, low resistance.
* It is washable.
* Long working life which is economical.
Application:
Metal panel is used for pre-filter for air conditioning program.
技术参数:Specification
|
型号
Type
|
尺 寸Size
（宽x高x厚）
|
额定风量Rated Airflow(m3/h)
|
初阻力Initial Pressure Drop (Pa)
|
过滤效率(%)/计重法（>10um）Average Arrestance
|
|
FX-GN
|
595x595x10mm
|
3400
|
10
|
G1/60%
|
|
295x595x10mm
|
2000
|
10
|
G1/60%
|
|
595x595x21mm
|
3600
|
15
|
G1/65%
|
|
295x595x21mm
|
2200
|
15
|
G1/65%
|
|
FX-GJ
|
295x595x21
|
800
|
15
|
G2/65%
|
|
595x595x21
|
2200
|
15
|
G2/65%
|
|
295x595x25
|
1000
|
18
|
G2/65%
|
|
595x595x25
|
2600
|
18
|
G2/65%
|
|
295x595x46
|
1500
|
25
|
G2/65%
|
|
595x595x46
|
3200
|
25
|
G2/65%
|
注:可根据需要定制不同规格. Note: Special Size Available Upon Request.
