一、用途

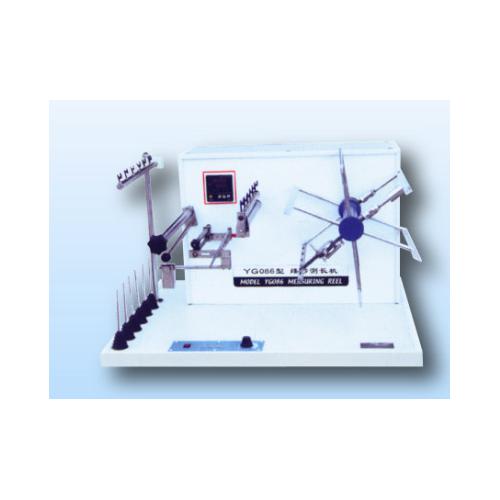

用于摇取一定长度的纱线，供测定纱线的线密度及长度。
Used for reeling set length’s yarn to test whose linear density and length.
适用标准Standards:GB/T4743; GB/T14343; GB/T6838; ISO2060等。
二、主要技术参数
Main Technical Parameter
|
纱框周长Reel girth
|
1000mm±0.5mm
|
|
圈数范围Reeling circle
|
1-9999，LED
|
|
纱框转速Reel speed
|
30-250r/min 无极调速
|
|
张力范围Pre-tension
|
0-100cN
|
|
导纱杆动程Guide bar travel
|
35mm
|
|
试验管纱数Bobbin number
|
1-6
|
|
外形尺寸Dimensions
|
780×700×500mm(L×W×H)
|
|
电源Power
|
AC220V,100W
|
所列规格如有变动，本公司拥有随时更改权，恕不另行通知。
If the listed specification has any changes,our company has right to modify without notification at any time.
