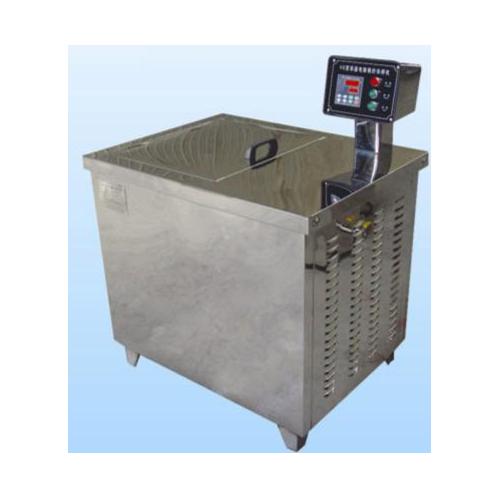

一、用途
此机是现今染色机中使用***为广泛的试验机，用于高温和常温染色，能快速试验小样，配合大生产。可单独取放染杯，操作性优良，可兼做水洗牢度试验机、干洗牢度试验完全符合ISO、AATCC条例标准。
Use
This machine is widely used in dyeing test machine and applicable for high temperature and normal temperature dyeing.It can test the samples fast and mass production.It can also be used as wash fastness tester and dry cleaning fastness tester with separating dyeing cups,and absolutely measuring up ISO,AATCC standard.
二、主要技术参数
Main Technical Parameter
|
型号Model
|
HS-12P
|
HS-24P
|
H2+8
|
H4+6
|
|
试杯数量Number of dyeing cup
|
12杯
|
24杯
|
10杯
|
10杯
|
|
试杯规格Cup specification
|
300-500ml
|
300-500ml
|
300-500ml8个
4000-6000ml2个
|
300-500ml6个
4000-6000ml4个
|
|
钢杯材质capable person of dyeing cup
|
316L一次拉伸成型Formed by integral drawing
|
|
转动速度Rotation speed
|
0.2-60次/min
|
|
试杯转速Speed of dyeing cup
|
45r/min
|
|
温控范围Temperature control range
|
室温Room temperature -135℃
|
|
升温速率Speed of temperature rise
|
0.2-4℃/min
|
|
加热功率Heating power
|
4kw
|
9kw
|
|
加热介质Heating medium
|
甘油Glycerol
|
|
电源Power supply
|
AC220V
|
所列规格如有变动，本公司拥有随时更改权，恕不另行通知。
If the listed specification has any changes,our company has right to modify without notification at any time.
