（PS）寸法表
|

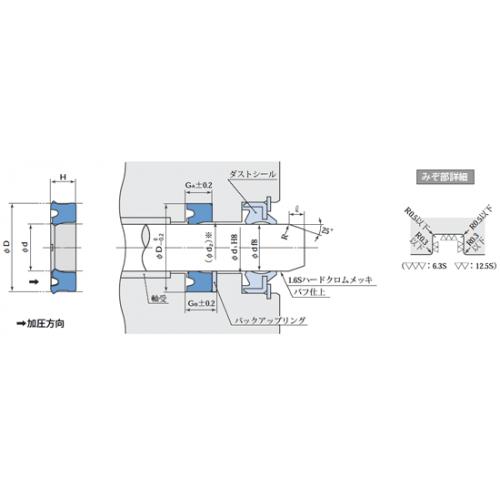

パッキンおよびみぞ寸法
(単位：mm）
|
指示コード
|
|
ペンタシール（PS）
|
併用バック（PT101）
|
|
d
|
D
|
H
|
GA
|
GB
|
d1（参考）
|
|
標準
（RN 906）
|
耐熱用
（RF 905）
|
バイアス
カットタイプ
|
エンドレス
タイプ
|
|
3
|
6
|
2
|
2.5
|
3.9
|
3.2
|
1.5
|
PS-3
|
|
T2 P-3
|
T3 P-3
|
|
4
|
7
|
2
|
2.5
|
3.9
|
4.2
|
1.5
|
PS-4
|
|
T2 P-4
|
T3 P-4
|
|
5
|
8
|
2
|
2.5
|
3.9
|
5.2
|
1.5
|
PS-5
|
|
T2 P-5
|
T3 P-5
|
|
6
|
9
|
2
|
2.5
|
3.9
|
6.2
|
1.5
|
PS-6
|
|
T2 P-6
|
T3 P-6
|
|
7
|
10
|
2
|
2.5
|
3.9
|
7.2
|
1.5
|
PS-7
|
|
T2 P-7
|
T3 P-7
|
|
8
|
11
|
2
|
2.5
|
3.9
|
8.2
|
1.5
|
PS-8
|
|
T2 P-8
|
T3 P-8
|
|
9
|
12
|
2
|
2.5
|
3.9
|
9.2
|
1.5
|
PS-9
|
|
T2 P-9
|
T3 P-9
|
|
10
|
13
|
2
|
2.5
|
3.9
|
10.2
|
1.5
|
PS-10
|
|
T2 P-10
|
T3 P-10
|
|
10
|
14
|
2.9
|
3.2
|
4.4
|
10.3
|
1.5
|
PS-10A
|
|
T2 P-10A
|
T3 P-10A
|
|
11.2
|
15.2
|
2.9
|
3.2
|
4.4
|
11.5
|
1.5
|
PS-11.2
|
|
T2 P-11.2
|
T3 P-11.2
|
|
12
|
16
|
2.9
|
3.2
|
4.4
|
12.3
|
1.5
|
PS-12
|
|
T2 P-12
|
T3 P-12
|
|
12.5
|
16.5
|
2.9
|
3.2
|
4.4
|
12.8
|
1.5
|
PS-12.5
|
|
T2 P-12.5
|
T3 P-12.5
|
|
14
|
18
|
2.9
|
3.2
|
4.4
|
14.3
|
1.5
|
PS-14
|
|
T2 P-14
|
T3 P-14
|
|
15
|
19
|
2.9
|
3.2
|
4.4
|
15.3
|
1.5
|
PS-15
|
PS-15F
|
T2 P-15
|
T3 P-15
|
|
16
|
20
|
2.9
|
3.2
|
4.4
|
16.3
|
1.5
|
PS-16
|
|
T2 P-16
|
T3 P-16
|
|
18
|
22
|
2.9
|
3.2
|
4.4
|
18.3
|
1.5
|
PS-18
|
|
T2 P-18
|
T3 P-18
|
|
20
|
24
|
2.9
|
3.2
|
4.4
|
20.3
|
1.5
|
PS-20
|
|
T2 P-20
|
T3 P-20
|
|
22
|
26
|
2.9
|
3.2
|
4.4
|
22.3
|
1.5
|
PS-22
|
|
T2 P-22
|
T3 P-22
|
|
22
|
28
|
4.3
|
4.7
|
6
|
22.3
|
3
|
PS-22A
|
|
T2 P-22A
|
T3 P-22A
|
|
22.4
|
28.4
|
4.3
|
4.7
|
6
|
22.7
|
3
|
PS-22.4
|
|
T2 P-22.4
|
T3 P-22.4
|
|
24
|
30
|
4.3
|
4.7
|
6
|
24.3
|
3
|
PS-24
|
|
T2 P-24
|
T3 P-24
|
|
25
|
31
|
4.3
|
4.7
|
6
|
25.3
|
3
|
PS-25
|
PS-25F
|
T2 P-25
|
T3 P-25
|
|
26
|
32
|
4.3
|
4.7
|
6
|
26.3
|
3
|
PS-26
|
|
T2 P-26
|
T3 P-26
|
|
28
|
34
|
4.3
|
4.7
|
6
|
28.3
|
3
|
PS-28
|
PS-28F
|
T2 P-28
|
T3 P-28
|
|
30
|
36
|
4.3
|
4.7
|
6
|
30.3
|
3
|
PS-30
|
|
T2 P-30
|
T3 P-30
|
|
31
|
37
|
4.3
|
4.7
|
6
|
31.3
|
3
|
PS-31
|
|
T2 P-31
|
T3 P-31
|
|
31.5
|
37.5
|
4.3
|
4.7
|
6
|
31.8
|
3
|
PS-31.5
|
|
T2 P-31.5
|
T3 P-31.5
|
|
32
|
38
|
4.3
|
4.7
|
6
|
32.3
|
3
|
PS-32
|
PS-32F
|
T2 P-32
|
T3 P-32
|
|
34
|
40
|
4.3
|
4.7
|
6
|
34.3
|
3
|
PS-34
|
|
T2 P-34
|
T3 P-34
|
|
35
|
41
|
4.3
|
4.7
|
6
|
35.3
|
3
|
PS-35
|
|
T2 P-35
|
T3 P-35
|
|
35.5
|
41.5
|
4.3
|
4.7
|
6
|
35.8
|
3
|
PS-35.5
|
PS-35.5F
|
T2 P-35.5
|
T3 P-35.5
|
|
36
|
42
|
4.3
|
4.7
|
6
|
36.3
|
3
|
PS-36
|
|
T2 P-36
|
T3 P-36
|
|
38
|
44
|
4.3
|
4.7
|
6
|
38.3
|
3
|
PS-38
|
|
T2 P-38
|
T3 P-38
|
|
40
|
46
|
4.3
|
4.7
|
6
|
40.3
|
3
|
PS-40
|
PS-40F
|
T2 P-40
|
T3 P-40
|
|
41
|
47
|
4.3
|
4.7
|
6
|
41.3
|
3
|
PS-41
|
|
T2 P-41
|
T3 P-41
|
|
42
|
48
|
4.3
|
4.7
|
6
|
42.3
|
3
|
PS-42
|
|
T2 P-42
|
T3 P-42
|
|
44
|
50
|
4.3
|
4.7
|
6
|
44.3
|
3
|
PS-44
|
|
T2 P-44
|
T3 P-44
|
|
45
|
51
|
4.3
|
4.7
|
6
|
45.3
|
3
|
PS-45
|
PS-45F
|
T2 P-45
|
T3 P-45
|
|
46
|
52
|
4.3
|
4.7
|
6
|
46.3
|
3
|
PS-46
|
|
T2 P-46
|
T3 P-46
|
|
48
|
54
|
4.3
|
4.7
|
6
|
48.3
|
3
|
PS-48
|
PS-48F
|
T2 P-48
|
T3 P-48
|
|
48
|
58
|
6.9
|
7.5
|
9
|
48.4
|
4
|
PS-48A
|
|
T2 P-48A
|
T3 P-48A
|
|
50
|
56
|
4.3
|
4.7
|
6
|
50.3
|
3
|
PS-50
|
|
T2 P-50
|
T3 P-50
|
|
50
|
60
|
6.9
|
7.5
|
9
|
50.4
|
4
|
PS-50A
|
|
T2 P-50A
|
T3 P-50A
|
|
52
|
62
|
6.9
|
7.5
|
9
|
52.4
|
4
|
PS-52
|
|
T2 P-52
|
T3 P-52
|
|
53
|
63
|
6.9
|
7.5
|
9
|
53.4
|
4
|
PS-53
|
|
T2 P-53
|
T3 P-53
|
|
55
|
65
|
6.9
|
7.5
|
9
|
55.4
|
4
|
PS-55
|
|
T2 P-55
|
T3 P-55
|
|
56
|
66
|
6.9
|
7.5
|
9
|
56.4
|
4
|
PS-56
|
|
T2 P-56
|
T3 P-56
|
|
58
|
68
|
6.9
|
7.5
|
9
|
58.4
|
4
|
PS-58
|
|
T2 P-58
|
T3 P-58
|
|
60
|
70
|
6.9
|
7.5
|
9
|
60.4
|
4
|
PS-60
|
|
T2 P-60
|
T3 P-60
|
|
62
|
72
|
6.9
|
7.5
|
9
|
62.4
|
4
|
PS-62
|
|
T2 P-62
|
T3 P-62
|
|
63
|
73
|
6.9
|
7.5
|
9
|
63.4
|
4
|
PS-63
|
|
T2 P-63
|
T3 P-63
|
|
65
|
75
|
6.9
|
7.5
|
9
|
65.4
|
4
|
PS-65
|
|
T2 P-65
|
T3 P-65
|
|
67
|
77
|
6.9
|
7.5
|
9
|
67.4
|
4
|
PS-67
|
|
T2 P-67
|
T3 P-67
|
|
70
|
80
|
6.9
|
7.5
|
9
|
70.4
|
4
|
PS-70
|
|
T2 P-70
|
T3 P-70
|
|
71
|
81
|
6.9
|
7.5
|
9
|
71.4
|
4
|
PS-71
|
|
T2 P-71
|
T3 P-71
|
|
75
|
85
|
6.9
|
7.5
|
9
|
75.4
|
4
|
PS-75
|
|
T2 P-75
|
T3 P-75
|
|
80
|
90
|
6.9
|
7.5
|
9
|
80.4
|
4
|
PS-80
|
PS-80F
|
T2 P-80
|
T3 P-80
|
|
85
|
95
|
6.9
|
7.5
|
9
|
85.4
|
4
|
PS-85
|
|
T2 P-85
|
T3 P-85
|
|
90
|
100
|
6.9
|
7.5
|
9
|
90.4
|
4
|
PS-90
|
PS-90F
|
T2 P-90
|
T3 P-90
|
|
95
|
105
|
6.9
|
7.5
|
9
|
95.4
|
4
|
PS-95
|
|
T2 P-95
|
T3 P-95
|
|
100
|
110
|
6.9
|
7.5
|
9
|
100.4
|
4
|
PS-100
|
PS-100F
|
T2 P-100
|
T3 P-100
|
RNYパッキン寸法表
|
パッキンおよびみぞ寸法(単位：mm）
|
指示コード
|
互換SKY
パッキン
|
|
d
|
D
|
H
|
GA
|
GB
|
d1(参考)
|
|
標準
（RN922)
|
併用バック
（PT111）
|
|
16
|
24
|
5.1
|
5.7
|
6.7
|
16.4
|
2.5
|
RNY-16
|
TCS-24×16
|
SKY-16
|
|
18
|
26
|
5.1
|
5.7
|
6.7
|
18.4
|
2.5
|
RNY-18
|
TCS-26×18
|
SKY-18
|
|
20
|
28
|
5.1
|
5.7
|
6.7
|
20.4
|
2.5
|
RNY-20
|
TCS-28×20
|
SKY-20
|
|
22
|
30
|
5.1
|
5.7
|
6.7
|
22.4
|
2.5
|
RNY-22
|
TCS-30×22
|
SKY-22
|
|
22.4
|
30
|
5.1
|
5.7
|
6.7
|
22.8
|
2.5
|
RNY-22.4
|
TCS-30×22.4
|
SKY-22.4
|
|
25
|
33
|
5.1
|
5.7
|
6.7
|
25.4
|
2.5
|
RNY-25
|
TCS-33×25
|
SKY-25
|
|
28
|
35.5
|
5.1
|
5.7
|
6.7
|
28.4
|
2.5
|
RNY-28
|
TCS-35.5×28
|
SKY-28
|
|
30
|
40
|
6.2
|
7
|
8.5
|
30.5
|
3
|
RNY-30
|
TCS-40×30
|
SKY-30
|
|
31.5
|
41.5
|
6.2
|
7
|
8.5
|
32
|
3
|
RNY-31.5
|
TCS-41.5×31.5
|
SKY-31.5
|
|
32
|
42
|
6.2
|
7
|
8.5
|
32.5
|
3
|
RNY-32
|
TCS-42×32
|
SKY-32
|
|
35
|
45
|
6.2
|
7
|
8.5
|
35.5
|
3
|
RNY-35
|
TCS-45×35
|
SKY-35
|
|
35.5
|
45
|
6.2
|
7
|
8.5
|
36
|
3
|
RNY-35.5
|
TCS-45×35.5
|
SKY-35.5
|
|
36
|
46
|
6.2
|
7
|
8.5
|
36.5
|
3
|
RNY-36
|
TCS-46×36
|
SKY-36
|
|
40
|
50
|
6.2
|
7
|
8.5
|
40.5
|
3
|
RNY-40
|
TCS-50×40
|
SKY-40
|
|
45
|
55
|
6.2
|
7
|
8.5
|
45.5
|
3
|
RNY-45
|
TCS-55×45
|
SKY-45
|
|
45
|
56
|
7.2
|
8
|
9.5
|
45.5
|
3
|
RNY-45A
|
TCS-56×45
|
SKY-45A
|
|
50
|
60
|
6.2
|
7
|
8.5
|
50.5
|
3
|
RNY-50
|
TCS-60×50
|
SKY-50
|
|
55
|
65
|
6.2
|
7
|
8.5
|
55.6
|
3
|
RNY-55
|
TCS-65×55
|
SKY-55
|
|
56
|
66
|
6.2
|
7
|
8.5
|
56.6
|
3
|
RNY-56
|
TCS-66×56
|
SKY-56
|
|
60
|
70
|
6.2
|
7
|
8.5
|
60.6
|
3
|
RNY-60
|
TCS-70×60
|
SKY-60
|
|
60
|
71
|
7.2
|
8
|
9.5
|
60.6
|
3
|
RNY-60A
|
TCS-71×60
|
SKY-60A
|
|
63
|
73
|
6.2
|
7
|
8.5
|
63.6
|
3
|
RNY-63
|
TCS-73×63
|
SKY-63
|
|
65
|
75
|
6.2
|
7
|
8.5
|
65.6
|
3
|
RNY-65
|
TCS-75×65
|
SKY-65
|
|
65
|
78
|
8.2
|
9
|
11
|
65.6
|
3.5
|
RNY-65B
|
TCS-78×65
|
――
|
|
70
|
80
|
6.2
|
7
|
8.5
|
70.6
|
3.5
|
RNY-70
|
TCS-80×70
|
SKY-70
|
|
70
|
85
|
9.2
|
10
|
12
|
70.6
|
3.5
|
RNY-70B
|
TCS-85×70
|
――
|
|
71
|
80
|
6.2
|
7
|
8.5
|
71.6
|
3.5
|
RNY-71
|
TCS-80×71
|
SKY-71
|
|
75
|
85
|
6.2
|
7
|
8.5
|
75.6
|
3.5
|
RNY-75
|
TCS-85×75
|
SKY-75
|
|
75
|
90
|
9.2
|
10
|
12
|
75.6
|
3.5
|
RNY-75B
|
TCS-90×75
|
――
|
|
80
|
90
|
6.2
|
7
|
8.5
|
80.6
|
3.5
|
RNY-80
|
TCS-90×80
|
SKY-80
|
|
80
|
95
|
9.2
|
10
|
12
|
80.6
|
4
|
RNY-80B
|
TCS-95×80
|
――
|
|
85
|
100
|
9.2
|
10
|
12
|
85.6
|
4
|
RNY-85
|
TCS-100×85
|
SKY-85
|
|
90
|
105
|
9.2
|
10
|
12
|
90.6
|
4
|
RNY-90
|
TCS-105×90
|
SKY-90
|
|
100
|
115
|
9.2
|
10
|
12
|
100.6
|
4
|
RNY-100
|
TCS-115×100
|
SKY-100
|
|
110
|
125
|
9.2
|
10
|
12
|
110.6
|
4
|
RNY-110
|
TCS-125×110
|
――
|
|
112
|
125
|
8.7
|
10
|
12
|
112.6
|
4
|
RNY-112
|
TCS-125×112
|
SKY-112, 112A
|
|
125
|
140
|
9.2
|
10
|
12
|
125.6
|
4
|
RNY-125
|
TCS-140×125
|
SKY-125
|
|
140
|
155
|
9.2
|
10
|
12
|
140.6
|
4
|
RNY-140
|
TCS-155×140
|
SKY-140
|
|
160
|
175
|
9.2
|
10
|
12
|
160.6
|
4
|
RNY-160
|
TCS-175×160
|
SKY-160
|
|
180
|
200
|
12.2
|
13
|
15.5
|
180.7
|
5.5
|
RNY-180
|
TCS-200×180
|
SKY-180
|
