RGUパッキン寸法表
|

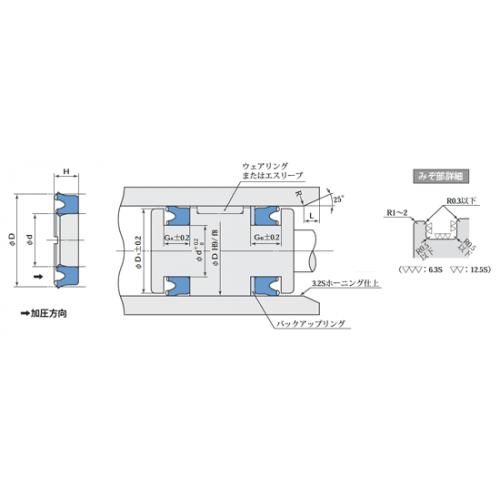

パッキンおよびみぞ寸法 (単位：mm）
|
指示コード
|
|
D
|
d
|
H
|
GA
|
GB
|
D1
|
D2
|
L
|
標準(RN923)
|
併用バック(PT111)
|
|
40
|
30
|
6.5
|
7
|
11
|
39.5
|
38.5
|
2.5
|
RGU-40A
|
TBC-40×30×2
|
|
45
|
35
|
6.5
|
7
|
11
|
44.5
|
43.5
|
2.5
|
RGU-45A
|
TBC-45×35×2
|
|
50
|
40
|
6.5
|
7
|
11
|
49.5
|
48.5
|
2.5
|
RGU-50A
|
TBC-50×40×2
|
|
55
|
45
|
6.5
|
7
|
11
|
54.4
|
53
|
2.5
|
RGU-55A
|
TBC-55×45×2
|
|
60
|
50
|
6.5
|
7
|
11
|
59.4
|
58
|
2.5
|
RGU-60A
|
TBC-60×50×2
|
|
63
|
53
|
6.5
|
7
|
11
|
62.4
|
61
|
2.5
|
RGU-63A
|
TBC-63×53×2
|
|
65
|
55
|
6.5
|
7
|
12
|
64.4
|
63
|
2.5
|
RGU-65A
|
TBC-65×55×2.5
|
|
70
|
60
|
6.5
|
7
|
12
|
69.4
|
68
|
2.5
|
RGU-70A
|
TBC-70×60×2.5
|
|
75
|
65
|
6.5
|
7
|
12
|
74.4
|
73
|
2.5
|
RGU-75A
|
TBC-75×65×2.5
|
|
80
|
67
|
8
|
8.5
|
13.5
|
79.4
|
78
|
3
|
RGU-80A
|
TBC-80×67×2.5
|
|
85
|
72
|
8
|
8.5
|
13.5
|
84.4
|
83
|
3
|
RGU-85A
|
TBC-85×72×2.5
|
|
90
|
77
|
8
|
8.5
|
13.5
|
89.4
|
88
|
3
|
RGU-90A
|
TBC-90×77×2.5
|
|
100
|
85
|
9
|
10
|
16
|
99.4
|
98
|
4
|
RGU-100A
|
TBC-100×85×3
|
RGYパッキン寸法表
|
パッキンおよびみぞ寸法(単位：mm）
|
指示コード
|
互換SKY
パッキン
|
|
D
|
d
|
H
|
GA
|
GB
|
D1
|
L
|
標準
（RN923）
|
併用バック
（PT111）
|
HNBR
|
|
(RP902)
|
(RP903)
|
|
40
|
30
|
6.2
|
7
|
8.5
|
39
|
3.5
|
RGY-40
|
TCS-40×30
|
●
|
|
SKY-30
|
|
45
|
35
|
6.2
|
7
|
8.5
|
44
|
3.5
|
RGY-45
|
TCS-45×35
|
|
|
SKY-35
|
|
50
|
40
|
6.2
|
7
|
8.5
|
49
|
3.5
|
RGY-50
|
TCS-50×40
|
●
|
|
SKY-40
|
|
55
|
45
|
6.2
|
7
|
8.5
|
54
|
3.5
|
RGY-55
|
TCS-55×45
|
|
|
SKY-45
|
|
60
|
50
|
6.2
|
7
|
8.5
|
59
|
3.5
|
RGY-60
|
TCS-60×50
|
|
|
SKY-50
|
|
63
|
53
|
6.2
|
7
|
8.5
|
62
|
3.5
|
RGY-63
|
TCS-63×53
|
●
|
|
SKY-53
|
|
65
|
55
|
6.2
|
7
|
8.5
|
64
|
3.5
|
RGY-65
|
TCS-65×55
|
|
|
SKY-55
|
|
70
|
60
|
6.2
|
7
|
8.5
|
69
|
3.5
|
RGY-70
|
TCS-70×60
|
|
|
SKY-60
|
|
70
|
57
|
8.2
|
9
|
11
|
69
|
4
|
RGY-70B
|
TCS-70×57
|
|
|
――
|
|
75
|
65
|
6.2
|
7
|
8.5
|
74
|
4
|
RGY-75
|
TCS-75×65
|
|
|
SKY-65
|
|
75
|
62
|
8.2
|
9
|
11
|
74
|
4
|
RGY-75B
|
TCS-75×62
|
|
|
――
|
|
80
|
70
|
6.2
|
7
|
8.5
|
79
|
4
|
RGY-80
|
TCS-80×70
|
●
|
|
SKY-70
|
|
80
|
71
|
6.2
|
7
|
8.5
|
79
|
4
|
RGY-80A
|
TCS-80×71
|
|
|
SKY-71
|
|
80
|
65
|
9.2
|
10
|
12
|
79
|
4
|
RGY-80B
|
TCS-80×65
|
|
|
――
|
|
90
|
80
|
6.2
|
7
|
8.5
|
89
|
4
|
RGY-90
|
TCS-90×80
|
|
|
SKY-80
|
|
90
|
75
|
9.2
|
10
|
12
|
88
|
4
|
RGY-90B
|
TCS-90×75
|
|
|
――
|
|
100
|
85
|
9.2
|
10
|
12
|
98
|
4
|
RGY-100
|
TCS-100×85
|
●
|
|
SKY-85
|
|
110
|
95
|
9.2
|
10
|
12
|
108
|
4
|
RGY-110
|
TCS-110×95
|
|
|
SKY-95
|
|
120
|
106
|
8.7
|
9.5
|
11.5
|
118
|
4
|
RGY-120
|
TCS-120×106
|
|
|
SKY-106
|
|
125
|
112
|
8.7
|
9.5
|
11.5
|
123
|
4
|
RGY-125
|
TCS-125×112
|
●
|
●
|
SKY-112, 112A
|
|
140
|
125
|
9.2
|
10
|
12
|
138
|
4
|
RGY-140
|
TCS-140×125
|
●
|
●
|
SKY-125
|
|
150
|
136
|
8.7
|
9.5
|
11.5
|
148
|
4
|
RGY-150
|
TCS-150×136
|
●
|
●
|
SKY-136
|
|
160
|
145
|
9.2
|
10
|
12
|
158
|
4
|
RGY-160
|
TCS-160×145
|
●
|
●
|
SKY-145
|
|
180
|
165
|
9.2
|
10
|
12
|
178
|
4
|
RGY-180
|
TCS-180×165
|
●
|
●
|
SKY-165
|
|
200
|
180
|
12.2
|
13
|
15.5
|
198
|
5.5
|
RGY-200
|
TCS-200×180
|
●
|
●
|
SKY-180
|
|
224
|
204
|
12.2
|
13
|
15.5
|
222
|
5.5
|
RGY-224
|
TCS-224×204
|
●
|
●
|
SKY-204
|
