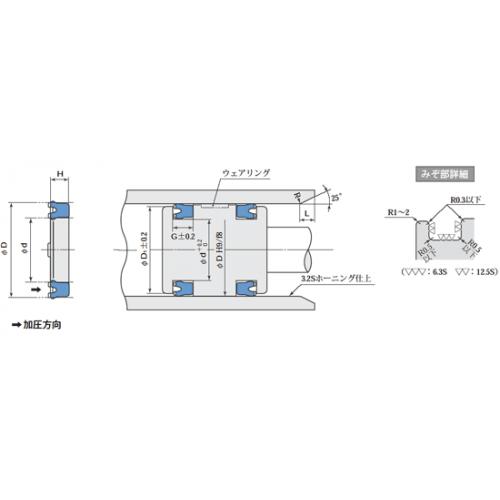

HSDパッキン寸法表
|
パッキンおよびみぞ寸法 (単位：mm）
|
指示コード
|
|
D
|
d
|
H
|
GA
|
GB
|
D1
|
D2
|
L
|
標準（RN906)
|
併用バック（PT111)
|
|
20
|
14
|
1.9
|
2.4
|
4.4
|
19.5
|
19
|
1.5
|
HSD-20
|
TCS-20×14
|
|
25
|
17
|
2.6
|
3.2
|
5.2
|
24.5
|
24
|
2
|
HSD-25
|
TCS-25×17
|
|
30
|
22
|
2.6
|
3.2
|
5.2
|
29.5
|
29
|
2
|
HSD-30
|
TCS-30×22
|
|
32
|
24
|
2.6
|
3.2
|
5.2
|
31.5
|
30.5
|
2
|
HSD-32
|
TCS-32×24
|
|
35
|
27
|
2.6
|
3.2
|
5.2
|
34.5
|
33.5
|
2
|
HSD-35
|
TCS-35×27
|
|
40
|
32
|
2.6
|
3.2
|
5.2
|
39.5
|
38.5
|
2
|
HSD-40
|
TCS-40×32
|
|
40
|
30
|
3.4
|
4
|
7
|
39.5
|
38.5
|
2.5
|
HSD-40A
|
TCS-40×30
|
|
45
|
35
|
3.4
|
4
|
7
|
44.5
|
43.5
|
2.5
|
HSD-45
|
TCS-45×35
|
|
50
|
40
|
3.4
|
4
|
7
|
49.5
|
48.5
|
2.5
|
HSD-50
|
TCS-50×40
|
|
55
|
45
|
3.4
|
4
|
7
|
54.4
|
53
|
2.5
|
HSD-55
|
TCS-55×45
|
|
60
|
50
|
3.4
|
4
|
7
|
59.4
|
58
|
2.5
|
HSD-60
|
TCS-60×50
|
|
63
|
53
|
3.4
|
4
|
7
|
62.4
|
61
|
2.5
|
HSD-63
|
TCS-63×53
|
|
65
|
55
|
3.4
|
4
|
7
|
64.4
|
63
|
2.5
|
HSD-65
|
TCS-65×55
|
|
70
|
55
|
5.2
|
6
|
10
|
69.4
|
68
|
3
|
HSD-70
|
TCS-70×55
|
|
80
|
65
|
5.2
|
6
|
10
|
79.4
|
78
|
3
|
HSD-80
|
TCS-80×65
|
|
90
|
75
|
5.2
|
6
|
10
|
89.4
|
88
|
3
|
HSD-90
|
TCS-90×75
|
|
100
|
85
|
5.2
|
6
|
10
|
99.4
|
98
|
3
|
HSD-100
|
TCS-100×85
|

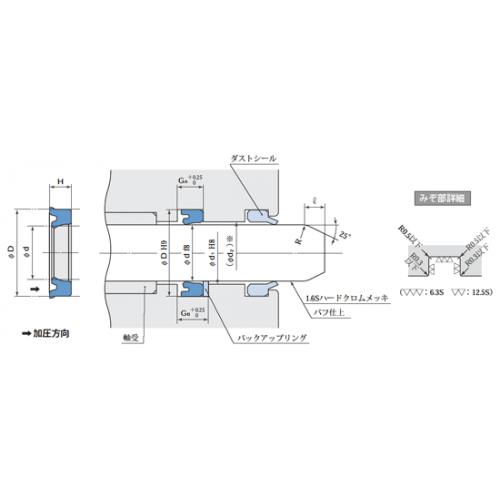

NMYパッキン寸法表
|
パッキンおよびみぞ寸法 (単位：mm）
|
指示コード
|
|
NMYパッキン
|
併用バック（PT101）
|
|
d
|
D
|
H
|
GA
|
GB
|
d1
(参考)
|
|
標準（RN 906）
|
バイアスカットタイプ
|
エンドレスタイプ
|
|
3
|
6
|
2.1
|
2.5
|
3.9
|
3.2
|
1.5
|
NMY-3
|
T2 P-3
|
T3 P-3
|
|
4
|
7
|
2.1
|
2.5
|
3.9
|
4.2
|
1.5
|
NMY-4
|
T2 P-4
|
T3 P-4
|
|
5
|
8
|
2.1
|
2.5
|
3.9
|
5.2
|
1.5
|
NMY-5
|
T2 P-5
|
T3 P-5
|
|
6
|
9
|
2.1
|
2.5
|
3.9
|
6.2
|
1.5
|
NMY-6
|
T2 P-6
|
T3 P-6
|
|
7
|
10
|
2.1
|
2.5
|
3.9
|
7.2
|
1.5
|
NMY-7
|
T2 P-7
|
T3 P-7
|
|
8
|
11
|
2.1
|
2.5
|
3.9
|
8.2
|
1.5
|
NMY-8
|
T2 P-8
|
T3 P-8
|
|
9
|
12
|
2.1
|
2.5
|
3.9
|
9.2
|
1.5
|
NMY-9
|
T2 P-9
|
T3 P-9
|
|
10
|
13
|
2.1
|
2.5
|
3.9
|
10.2
|
1.5
|
NMY-10
|
T2 P-10
|
T3 P-10
|
|
10
|
14
|
2.8
|
3.2
|
4.4
|
10.3
|
1.5
|
NMY-10A
|
T2 P-10A
|
T3 P-10A
|
|
12
|
16
|
2.8
|
3.2
|
4.4
|
12.3
|
1.5
|
NMY-12
|
T2 P-12
|
T3 P-12
|
|
14
|
18
|
2.8
|
3.2
|
4.4
|
14.3
|
1.5
|
NMY-14
|
T2 P-14
|
T3 P-14
|
|
15
|
19
|
2.8
|
3.2
|
4.4
|
15.3
|
1.5
|
NMY-15
|
T2 P-15
|
T3 P-15
|
|
16
|
20
|
2.8
|
3.2
|
4.4
|
16.3
|
1.5
|
NMY-16
|
T2 P-16
|
T3 P-16
|
|
18
|
22
|
2.8
|
3.2
|
4.4
|
18.3
|
1.5
|
NMY-18
|
T2 P-18
|
T3 P-18
|
|
20
|
24
|
2.8
|
3.2
|
4.4
|
20.3
|
1.5
|
NMY-20
|
T2 P-20
|
T3 P-20
|
|
25
|
31
|
4.2
|
4.7
|
6
|
25.3
|
3
|
NMY-25
|
T2 P-25
|
T3 P-25
|
|
30
|
36
|
4.2
|
4.7
|
6
|
30.3
|
3
|
NMY-30
|
T2 P-30
|
T3 P-30
|

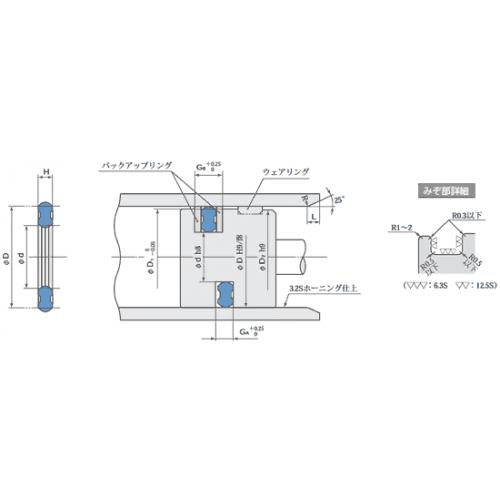

OSYパッキン寸法表
|
パッキンおよびみぞ寸法(単位：mm）
|
指示コード
|
|
D
|
d
|
H
|
G
|
D1
|
L
|
標準（RN 801）
|
|
40
|
30
|
5.8
|
7
|
39
|
3
|
OSY-40
|
|
50
|
40
|
5.8
|
7
|
49
|
3
|
OSY-50
|
|
63
|
53
|
5.8
|
7
|
62
|
3
|
OSY-63
|
|
80
|
70
|
5.8
|
7
|
79
|
3
|
OSY-80
|
|
100
|
85
|
8.5
|
10
|
98.5
|
4
|
OSY-100
|
|
125
|
110
|
8.5
|
10
|
123.5
|
4
|
OSY-125
|
|
140
|
125
|
8.5
|
10
|
138.5
|
4
|
OSY-140
|
|
160
|
145
|
8.5
|
10
|
158.5
|
4
|
OSY-160
|
|
180
|
165
|
8.5
|
10
|
178.5
|
4
|
OSY-180
|
