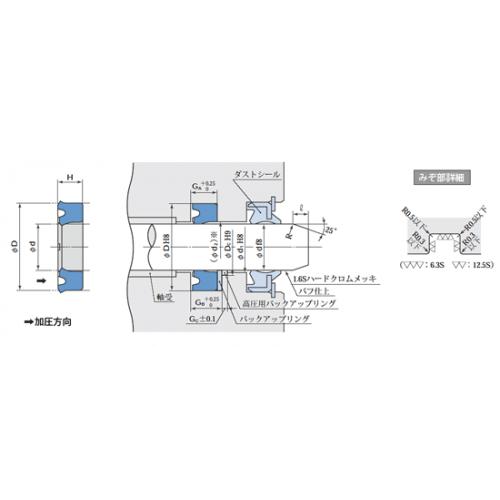

GNYパッキン寸法表
|
パッキンおよびみぞ寸法(単位：mm）
|
指示コード
|
|
d
|
D
|
H
|
GA
|
GB
|
GC
|
DC
|
d1(参考)
|
|
標準
（RN919）
|
標準バック
（PT114）
|
高圧バック
（PA101）
|
|
18
|
26
|
5
|
6
|
7.5
|
2
|
21
|
18.5
|
3.5
|
GNY- 18
|
TC-GNY-18
|
PE-GNY-18
|
|
20
|
28
|
5
|
6
|
7.5
|
2
|
23
|
20.5
|
3.5
|
GNY- 20
|
TC-GNY-20
|
PE-GNY-20
|
|
22
|
30
|
5
|
6
|
7.5
|
2
|
25
|
22.5
|
3.5
|
GNY- 22
|
TC-GNY-22
|
PE-GNY-22
|
|
25
|
33
|
5
|
6
|
7.5
|
2
|
28
|
25.5
|
3.5
|
GNY- 25
|
TC-GNY-25
|
PE-GNY-25
|
|
28
|
36
|
5
|
6
|
7.5
|
2
|
31
|
28.5
|
3.5
|
GNY- 28
|
TC-GNY-28
|
PE-GNY-28
|
|
30
|
40
|
6
|
7
|
9
|
2.5
|
34
|
30.5
|
4
|
GNY- 30
|
TC-GNY-30
|
PE-GNY-30
|
|
32
|
42
|
6
|
7
|
9
|
2.5
|
36
|
32.5
|
4
|
GNY- 32
|
TC-GNY-32
|
PE-GNY-32
|
|
35
|
45
|
6
|
7
|
9
|
2.5
|
39
|
35.5
|
4
|
GNY- 35
|
TC-GNY-35
|
PE-GNY-35
|
|
36
|
46
|
6
|
7
|
9
|
2.5
|
40
|
36.5
|
4
|
GNY- 36
|
TC-GNY-36
|
PE-GNY-36
|
|
40
|
50
|
6
|
7
|
9
|
2.5
|
44
|
40.5
|
4
|
GNY- 40
|
TC-GNY-40
|
PE-GNY-40
|
|
45
|
55
|
6
|
7
|
9
|
2.5
|
49
|
45.5
|
4
|
GNY- 45
|
TC-GNY-45
|
PE-GNY-45
|
|
50
|
63
|
8
|
9
|
11.5
|
3
|
56
|
50.5
|
5
|
GNY- 50
|
TC-GNY-50
|
PE-GNY-50
|
|
55
|
68
|
8
|
9
|
11.5
|
3
|
61
|
55.6
|
5
|
GNY- 55
|
TC-GNY-55
|
PE-GNY-55
|
|
56
|
69
|
8
|
9
|
11.5
|
3
|
62
|
56.6
|
5
|
GNY- 56
|
TC-GNY-56
|
PE-GNY-56
|
|
60
|
73
|
8
|
9
|
11.5
|
3
|
66
|
60.6
|
5
|
GNY- 60
|
TC-GNY-60
|
PE-GNY-60
|
|
63
|
76
|
8
|
9
|
11.5
|
3
|
69
|
63.6
|
5
|
GNY- 63
|
TC-GNY-63
|
PE-GNY-63
|
|
65
|
78
|
8
|
9
|
11.5
|
3
|
71
|
65.6
|
5
|
GNY- 65
|
TC-GNY-65
|
PE-GNY-65
|
|
70
|
85
|
9
|
10
|
12.5
|
3
|
76
|
70.6
|
5
|
GNY- 70
|
TC-GNY-70
|
PE-GNY-70
|
|
75
|
90
|
9
|
10
|
12.5
|
3
|
81
|
75.6
|
5
|
GNY- 75
|
TC-GNY-75
|
PE-GNY-75
|
|
80
|
95
|
9
|
10
|
12.5
|
3
|
86
|
80.6
|
5
|
GNY- 80
|
TC-GNY-80
|
PE-GNY-80
|
|
90
|
105
|
9
|
10
|
12.5
|
3
|
96
|
90.6
|
5
|
GNY- 90
|
TC-GNY-90
|
PE-GNY-90
|
|
100
|
120
|
12
|
13
|
16
|
3.5
|
107
|
100.6
|
6
|
GNY-100
|
TC-GNY-100
|
PE-GNY-100
|
|
110
|
130
|
12
|
13
|
16
|
3.5
|
117
|
110.6
|
6
|
GNY-110
|
TC-GNY-110
|
PE-GNY-110
|
|
125
|
145
|
12
|
13
|
16
|
3.5
|
132
|
125.7
|
6
|
GNY-125
|
TC-GNY-125
|
PE-GNY-125
|
|
140
|
160
|
12
|
13
|
16
|
3.5
|
147
|
140.7
|
6
|
GNY-140
|
TC-GNY-140
|
PE-GNY-140
|
|
160
|
180
|
12
|
13
|
16
|
3.5
|
167
|
160.7
|
6
|
GNY-160
|
TC-GNY-160
|
PE-GNY-160
|
|
180
|
200
|
12
|
13
|
16
|
3.5
|
187
|
180.7
|
6
|
GNY-180
|
TC-GNY-180
|
PE-GNY-180
|

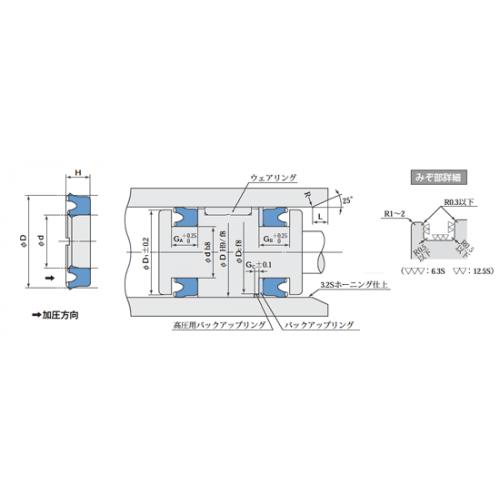

GPYパッキン寸法表
|
パッキンおよびみぞ寸法(単位：mm）
|
指示コード
|
|
D
|
d
|
H
|
GA
|
GB
|
GC
|
D1
|
DC
|
L
|
標準
（RN919）
|
標準バック
（PT114）
|
高圧バック
（PA101）
|
|
32
|
22
|
6.2
|
7
|
9
|
2.5
|
31
|
28
|
4
|
GPY-
0032001N919
|
TBC-
0022008T114
|
PBE-
0028001A101
|
|
40
|
30
|
6.2
|
7
|
9
|
2.5
|
39
|
36
|
4
|
GPY-40
|
TC-GPY-40
|
PE-GPY-40
|
|
45
|
35
|
6.2
|
7
|
9
|
2.5
|
44
|
41
|
4
|
GPY-45
|
TC-GPY-45
|
PE-GPY-45
|
|
50
|
40
|
6.2
|
7
|
9
|
2.5
|
49
|
46
|
4
|
GPY-50
|
TC-GPY-50
|
PE-GPY-50
|
|
55
|
45
|
6.2
|
7
|
9
|
2.5
|
54
|
51
|
4
|
GPY-55
|
TC-GPY-55
|
PE-GPY-55
|
|
60
|
50
|
6.2
|
7
|
9
|
2.5
|
59
|
56
|
4
|
GPY-60
|
TC-GPY-60
|
PE-GPY-60
|
|
63
|
53
|
6.2
|
7
|
9
|
2.5
|
62
|
59
|
4
|
GPY-63
|
TC-GPY-63
|
PE-GPY-63
|
|
65
|
52
|
7.7
|
8.5
|
11
|
3
|
63.5
|
59
|
5
|
GPY-65
|
TC-GPY-65
|
PE-GPY-65
|
|
70
|
57
|
7.7
|
8.5
|
11
|
3
|
68.5
|
64
|
5
|
GPY-70
|
TC-GPY-70
|
PE-GPY-70
|
|
75
|
62
|
7.7
|
8.5
|
11
|
3
|
73.5
|
69
|
5
|
GPY-75
|
TC-GPY-75
|
PE-GPY-75
|
|
80
|
65
|
9.2
|
10
|
12.5
|
3
|
78.5
|
74
|
5
|
GPY-80
|
TC-GPY-80
|
PE-GPY-80
|
|
85
|
70
|
9.2
|
10
|
12.5
|
3
|
83.5
|
79
|
5
|
GPY-85
|
TC-GPY-85
|
PE-GPY-85
|
|
90
|
75
|
9.2
|
10
|
12.5
|
3
|
88.5
|
84
|
5
|
GPY-90
|
TC-GPY-90
|
PE-GPY-90
|
|
100
|
80
|
12
|
13
|
16
|
3.5
|
98
|
93
|
6
|
GPY-100
|
TC-GPY-100
|
PE-GPY-100
|
|
110
|
90
|
12
|
13
|
16
|
3.5
|
108
|
103
|
6
|
GPY-110
|
TC-GPY-110
|
PE-GPY-110
|
|
120
|
100
|
12
|
13
|
16
|
3.5
|
118
|
113
|
6
|
GPY-120
|
TC-GPY-120
|
PE-GPY-120
|
|
125
|
105
|
12
|
13
|
16
|
3.5
|
123
|
118
|
6
|
GPY-125
|
TC-GPY-125
|
PE-GPY-125
|
|
130
|
110
|
12
|
13
|
16
|
3.5
|
128
|
123
|
6
|
GPY-130
|
TC-GPY-130
|
PE-GPY-130
|
|
140
|
120
|
12
|
13
|
16
|
3.5
|
138
|
133
|
6
|
GPY-140
|
TC-GPY-140
|
PE-GPY-140
|
|
150
|
125
|
16
|
17
|
20
|
4
|
148
|
142
|
7
|
GPY-150
|
TC-GPY-150
|
PE-GPY-150
|
|
160
|
135
|
16
|
17
|
20
|
4
|
158
|
152
|
7
|
GPY-160
|
TC-GPY-160
|
PE-GPY-160
|
|
180
|
155
|
16
|
17
|
20
|
4
|
178
|
172
|
7
|
GPY-180
|
TC-GPY-180
|
PE-GPY-180
|
|
200
|
175
|
16
|
17
|
20
|
4
|
198
|
192
|
7
|
GPY-200
|
TC-GPY-200
|
PE-GPY-200
|
|
250
|
225
|
16
|
17
|
20
|
4
|
248
|
242
|
7
|
GPY-250
|
TC-GPY-250
|
PE-GPY-250
|
