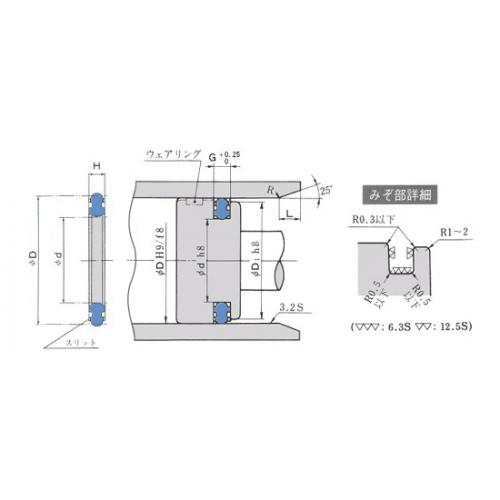

PSDパッキン寸法表
|
パッキンおよびみぞ寸法（単位：mm)
|
指示コード
|
|
D
|
d
|
H
|
G
|
D1
|
L
|
標準
（RN 713）
|
耐熱用
（RF 704）
|
|
10
|
5.4
|
1.6
|
1.8
|
9.7
|
1
|
PSD-10
|
PSD-10F
|
|
12
|
7.4
|
1.6
|
1.8
|
11.7
|
1
|
PSD-12
|
PSD-12F
|
|
15
|
10.4
|
1.6
|
1.8
|
14.7
|
1
|
PSD-15
|
PSD-15F
|
|
16
|
11.4
|
1.6
|
1.8
|
15.7
|
1
|
PSD-16
|
PSD-16F
|
|
20
|
14
|
2.24
|
2.4
|
19.5
|
1.5
|
PSD-20
|
PSD-20F
|
|
25
|
17
|
3
|
3.2
|
24.5
|
2
|
PSD-25
|
PSD-25F
|
|
30
|
22
|
3
|
3.2
|
29.5
|
2
|
PSD-30
|
PSD-30F
|
|
32
|
24
|
3
|
3.2
|
31.5
|
2
|
PSD-32
|
PSD-32F
|
|
38
|
30
|
3
|
3.2
|
37.5
|
2
|
PSD-0038A02N713
|
|
|
40
|
32
|
3
|
3.2
|
39.5
|
2
|
PSD-40
|
PSD-40F
|
|
44
|
36
|
3
|
3.2
|
43.5
|
2
|
PSD-0044A02N713
|
|
|
50
|
40
|
3.8
|
4
|
49.5
|
2.5
|
PSD-50
|
PSD-50F
|
|
56
|
46
|
3.8
|
4
|
55.5
|
2.5
|
PSD-0056A02N713
|
|
|
60
|
50
|
3.8
|
4
|
59.5
|
2.5
|
PSD-0060A03N713
|
|
|
63
|
53
|
3.8
|
4
|
62.4
|
2.5
|
PSD-63
|
PSD-63F
|
|
70
|
55
|
5.6
|
6
|
69.4
|
3
|
PSD-0070A02N713
|
|
|
75
|
60
|
5.6
|
6
|
74.4
|
3
|
PSD-0075A02N713
|
|
|
80
|
65
|
5.6
|
6
|
79.4
|
3
|
PSD-80
|
PSD-80F
|
|
85
|
70
|
5.6
|
6
|
84.4
|
3
|
PSD-0085A02N713
|
|
|
90
|
75
|
5.6
|
6
|
89.4
|
3
|
PSD-0090A02N713
|
|
|
95
|
80
|
5.6
|
6
|
94.4
|
3
|
PSD-0095A02N713
|
|
|
100
|
85
|
5.6
|
6
|
99.4
|
3
|
PSD-100
|
PSD-100F
|
|
110
|
95
|
5.6
|
6
|
109.3
|
3
|
PSD-0110A02N713
|
|
|
120
|
105
|
5.6
|
6
|
119.3
|
3.5
|
PSD-0120A03N713
|
|
|
125
|
110
|
5.6
|
6
|
124.3
|
3.5
|
PSD-125
|
PSD-125F
|
|
140
|
125
|
5.6
|
6
|
139.3
|
3.5
|
PSD-140
|
PSD-140F
|
|
150
|
135
|
5.6
|
6
|
149.3
|
3.5
|
PSD-0150A02N713
|
|
|
160
|
140
|
7.6
|
8
|
159.3
|
5
|
PSD-160
|
|
|
175
|
155
|
7.6
|
8
|
174.3
|
5
|
PSD-0175A02N713
|
|
|
180
|
160
|
7.6
|
8
|
179.3
|
5
|
PSD-180
|
PSD-180F
|
|
200
|
180
|
7.6
|
8
|
199
|
5
|
PSD-0200A03N713
|
PSD-0200A04F704
|
|
250
|
230
|
7.6
|
8
|
249
|
5
|
PSD-0250A03N713
|
|
|
300
|
280
|
7.6
|
8
|
299
|
5
|
PSD-0300A03N713
|
|

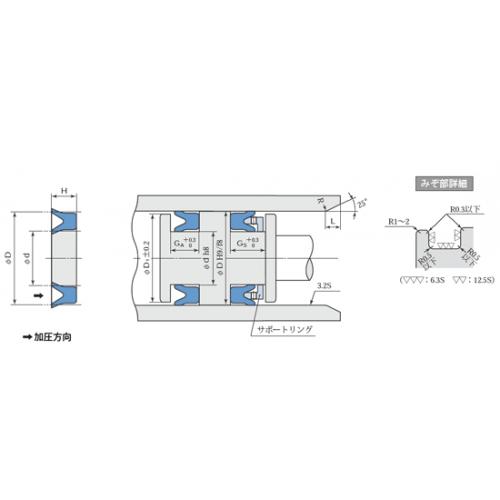

RYパッキン寸法表
|
パッキンおよびみぞ寸法（単位：mm)
|
指示コード
|
|
D
|
d
|
H
|
GA
|
GS
|
D1
|
L
|
|
標準
（RN 906）
|
|
250
|
225
|
16
|
18
|
21.5
|
247
|
10
|
10
|
AYH-0250001N906
|
|
255
|
230
|
16
|
18
|
21.5
|
252
|
10
|
10
|
AYH-0255001N906
|
|
265
|
240
|
16
|
18
|
21.5
|
262
|
10
|
10
|
AYH-0265001N906
|
|
275
|
250
|
16
|
18
|
21.5
|
272
|
10
|
10
|
AYH-0275001N906
|
|
280
|
255
|
16
|
18
|
21.5
|
277
|
10
|
10
|
AYH-0280001N906
|
|
300
|
275
|
16
|
18
|
21.5
|
297
|
10
|
10
|
AYH-0300002N906
|
|
305
|
280
|
16
|
18
|
21.5
|
302
|
10
|
10
|
AYH-0305001N906
|
|
320
|
295
|
16
|
18
|
21.5
|
317
|
10
|
10
|
AYH-0320002N906
|
|
325
|
300
|
16
|
18
|
21.5
|
322
|
10
|
10
|
AYH-0325001N906
|
|
340
|
315
|
16
|
18
|
21.5
|
337
|
10
|
10
|
AYH-0340001N906
|
|
345
|
320
|
16
|
18
|
21.5
|
342
|
10
|
10
|
AYH-0345001N906
|
|
350
|
325
|
16
|
18
|
21.5
|
347
|
10
|
10
|
AYH-0350001N906
|
|
355
|
330
|
16
|
18
|
21.5
|
352
|
10
|
10
|
AYH-0355001N906
|
|
360
|
335
|
16
|
18
|
21.5
|
357
|
10
|
10
|
AYH-0360001N906
|
|
365
|
340
|
16
|
18
|
21.5
|
362
|
10
|
10
|
AYH-0365001N906
|
|
380
|
355
|
16
|
18
|
21.5
|
377
|
10
|
10
|
AYH-0380001N906
|
|
385
|
360
|
16
|
18
|
21.5
|
382
|
10
|
10
|
AYH-0385001N906
|
|
405
|
380
|
16
|
18
|
21.5
|
402
|
10
|
10
|
AYH-0405001N906
|
|
420
|
390
|
18
|
20
|
24.5
|
417
|
15
|
15
|
AYH-0420001N906
|
|
425
|
395
|
18
|
20
|
24.5
|
422
|
15
|
15
|
AYH-0425001N906
|
|
430
|
400
|
18
|
20
|
24.5
|
427
|
15
|
15
|
AYH-0430001N906
|
|
450
|
420
|
18
|
20
|
24.5
|
447
|
15
|
15
|
AYH-0450001N906
|
|
475
|
445
|
18
|
20
|
24.5
|
472
|
15
|
15
|
AYH-0475001N906
|
|
480
|
450
|
18
|
20
|
24.5
|
477
|
15
|
15
|
AYH-0480001N906
|
|
500
|
470
|
18
|
20
|
24.5
|
497
|
15
|
15
|
AYH-0500002N906
|
|
530
|
500
|
18
|
20
|
24.5
|
527
|
15
|
15
|
AYH-0530001N906
|
|
550
|
520
|
18
|
20
|
24.5
|
547
|
15
|
15
|
AYH-0550001N906
|
|
560
|
530
|
18
|
20
|
24.5
|
557
|
15
|
15
|
AYH-0560001N906
|
|
580
|
550
|
18
|
20
|
24.5
|
577
|
15
|
15
|
AYH-0580001N906
|
|
600
|
570
|
18
|
20
|
24.5
|
597
|
15
|
15
|
AYH-0600002N906
|
|
630
|
600
|
18
|
20
|
24.5
|
627
|
15
|
15
|
AYH-0630001N906
|
|
680
|
650
|
18
|
20
|
24.5
|
677
|
15
|
15
|
AYH-0680001N906
|
|
700
|
670
|
18
|
20
|
24.5
|
697
|
15
|
15
|
AYH-0700001N906
|
|
730
|
700
|
18
|
20
|
24.5
|
727
|
15
|
15
|
AYH-0730001N906
|
|
750
|
720
|
18
|
20
|
24.5
|
747
|
15
|
15
|
AYH-0750001N906
|
|
780
|
750
|
18
|
20
|
24.5
|
777
|
15
|
15
|
AYH-0780001N906
|
|
800
|
770
|
18
|
20
|
24.5
|
797
|
15
|
15
|
AYH-0800001N906
|
|
830
|
800
|
18
|
20
|
24.5
|
827
|
15
|
15
|
AYH-0830001N906
|
|
880
|
850
|
18
|
20
|
24.5
|
877
|
15
|
15
|
AYH-0880001N906
|
|
950
|
920
|
18
|
20
|
24.5
|
947
|
15
|
15
|
AYH-0950001N906
|
|
1050
|
1020
|
18
|
20
|
24.5
|
1047
|
15
|
15
|
AYH-1050001N906
|
|
1100
|
1070
|
18
|
20
|
24.5
|
1097
|
15
|
15
|
AYH-1100001N906
|
|
1120
|
1090
|
18
|
20
|
24.5
|
1117
|
15
|
15
|
AYH-1120001N906
|
|
1300
|
1265
|
25
|
28
|
35
|
1296
|
20
|
20
|
AYH-1300001N906
|
