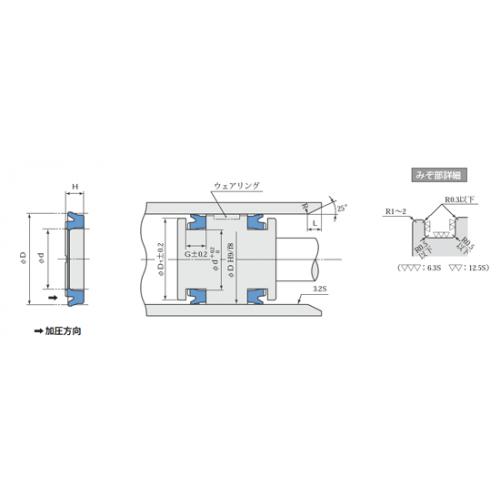

PGYパッキン寸法表
|
パッキンおよびみぞ寸法（単位：mm）
|
指示コード
|
|
D
|
d
|
H
|
G
|
D1
|
L
|
標準
（RN 713）
|
耐熱用
（RF 905）
|
|
20
|
12
|
5.2
|
5.7
|
17
|
3
|
PGY-0020001N713
|
|
|
25
|
17
|
5.2
|
5.7
|
23
|
3
|
PGY-0025001N713
|
|
|
28
|
20
|
5.2
|
5.7
|
26
|
3
|
PGY-0028001N713
|
|
|
30
|
22.4
|
5.2
|
5.7
|
29
|
3
|
PGY-30
|
|
|
32
|
24
|
5.2
|
5.7
|
31
|
3
|
PGY-32
|
|
|
40
|
30
|
6.5
|
7
|
39
|
3
|
PGY-40
|
|
|
50
|
40
|
6.5
|
7
|
49
|
3
|
PGY-50
|
|
|
63
|
53
|
6.5
|
7
|
62
|
3
|
PGY-63
|
|
|
80
|
70
|
6.5
|
7
|
79
|
3
|
PGY-80
|
|
|
100
|
85
|
9.5
|
10
|
98.5
|
4
|
PGY-100
|
PGY-100F
|
|
120
|
105
|
9.5
|
10
|
118.5
|
4
|
PGY-120
|
|
|
125
|
110
|
9.5
|
10
|
123.5
|
4
|
PGY-125
|
PGY-125F
|
|
140
|
125
|
9.5
|
10
|
138.5
|
4
|
PGY-140
|
|
|
150
|
135
|
9.5
|
10
|
148.5
|
4
|
PGY-150
|
PGY-150F
|
|
160
|
145
|
9.5
|
10
|
158.5
|
4
|
PGY-160
|
|
|
180
|
165
|
9.5
|
10
|
178.5
|
4
|
PGY-180
|
|
|
200
|
180
|
12
|
13
|
198
|
5
|
PGY-200
|
|
|
250
|
230
|
12
|
13
|
248
|
5
|
PGY-250
|
|
|
300
|
280
|
14
|
15
|
298
|
5
|
PGY-300
|
|

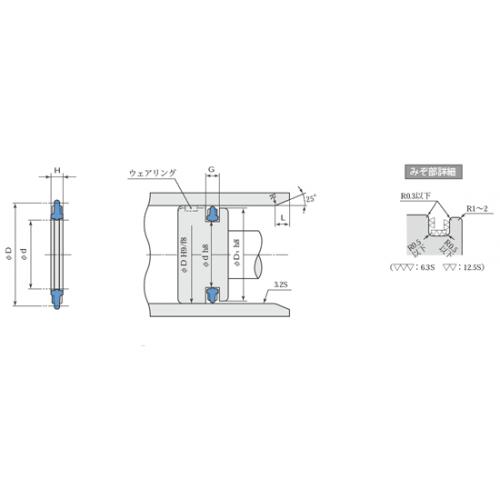

PPDパッキン寸法表
|
パッキンおよびみぞ寸法（単位：mm)
|
指示コード
|
互換PSD
パッキン
|
|
D
|
d
|
H
|
G
|
D1
|
L
|
標準
（RN 729）
|
|
10
|
5.4
|
1.6
|
1.8
|
＋0.1
0
|
9.7
|
1.5
|
PPD-10
|
PSD-10
|
|
12
|
7.4
|
1.6
|
1.8
|
11.7
|
1.5
|
PPD-12
|
PSD-12
|
|
15
|
10.4
|
1.6
|
1.8
|
14.7
|
1.5
|
PPD-15
|
PSD-15
|
|
16
|
11.4
|
1.6
|
1.8
|
15.7
|
1.5
|
PPD-16
|
PSD-16
|
|
20
|
14
|
2.2
|
2.4
|
19.5
|
1.5
|
PPD-20
|
PSD-20
|
|
25
|
17
|
3
|
3.2
|
+0.15
0
|
24.5
|
2
|
PPD-25
|
PSD-25
|
|
30
|
22
|
3
|
3.2
|
29.5
|
2
|
PPD-30
|
PSD-30
|
|
32
|
24
|
3
|
3.2
|
31.5
|
2
|
PPD-32
|
PSD-32
|
|
40
|
32
|
3
|
3.2
|
39.5
|
2
|
PPD-40
|
PSD-40
|
|
50
|
40
|
3.7
|
4
|
＋0.25
0
|
49.5
|
2.5
|
PPD-50
|
PSD-50
|
|
63
|
53
|
3.7
|
4
|
62.4
|
2.5
|
PPD-63
|
PSD-63
|
|
80
|
65
|
5.6
|
6
|
79.4
|
3
|
PPD-80
|
PSD-80
|
|
100
|
85
|
5.6
|
6
|
99.4
|
3
|
PPD-100
|
PSD-100
|
|
125
|
110
|
5.6
|
6
|
124.3
|
3.5
|
PPD-125
|
PSD-125
|
|
140
|
125
|
5.6
|
6
|
139.3
|
3.5
|
PPD-140
|
PSD-140
|
|
160
|
140
|
7.6
|
8
|
159.3
|
5
|
PPD-160
|
PSD-160
|
|
180
|
160
|
7.6
|
8
|
179.3
|
5
|
PPD-180
|
PSD-180
|
