SDBスクレーパ寸法表
|
スクレーパおよびみぞ寸法（単位：mm）
|
指示コード
|
互換SCB
スクレーパ
|
|
d
|
D
|
H
|
h
|
G
|
B
|
D1
|
D2
|
m
|
C
|
|
標準
（RN819）
|
塩素系用
（RF 903）
|
止め輪
|
|
8
|
18
|
7.5
|
4.8
|
5
|
3.5
|
18.8±0.1
|
17.8
|
0.7
|
14.9
|
2
|
SDB-8
|
SDB-8F
|
DSP-8
|
SCB-8
|
|
10
|
20
|
7.5
|
4.8
|
5
|
3.5
|
21 ±0.1
|
19.8
|
0.7
|
16.9
|
2
|
SDB-10
|
SDB-10F
|
DSP-10
|
SCB-10
|
|
12
|
22
|
7.5
|
4.8
|
5
|
3.5
|
23 ±0.1
|
21.8
|
0.7
|
18.9
|
2
|
SDB-12
|
SDB-12F
|
DSP-12
|
SCB-
0012001N807
|
|
14
|
24
|
7.5
|
4.8
|
5
|
3.5
|
25 ±0.1
|
23.8
|
0.7
|
20.9
|
2
|
SDB-14
|
SDB-14F
|
DSP-14
|
SCB-14
|
|
16
|
26
|
7.5
|
4.8
|
5
|
3.5
|
27 ±0.1
|
25.8
|
0.7
|
22.9
|
2
|
SDB-16
|
SDB-16F
|
DSP-16
|
SCB-16
|
|
18
|
30
|
9
|
5.8
|
6
|
4.5
|
31.5±0.1
|
29.8
|
0.8
|
26.3
|
2
|
SDB-18
|
SDB-18F
|
DSP-18
|
SCB-18
|
|
20
|
32
|
9
|
5.8
|
6
|
4.5
|
33.5±0.1
|
31.8
|
0.8
|
28.3
|
2
|
SDB-20
|
SDB-20F
|
DSP-20
|
SCB-20
|
|
22.4
|
34.4
|
9
|
5.8
|
6
|
4.5
|
35.9±0.1
|
34.2
|
0.8
|
30.7
|
2
|
SDB-22.4
|
SDB-22.4F
|
DSP-22.4
|
SCB-22.4
|
|
25
|
37
|
9
|
5.8
|
6
|
4.5
|
38.5±0.1
|
36.8
|
0.8
|
33.3
|
2
|
SDB-25
|
SDB-25F
|
DSP-25
|
SCB-25
|
|
28
|
40
|
9
|
5.8
|
6
|
4.5
|
41.5±0.1
|
39.8
|
0.8
|
36.3
|
2
|
SDB-28
|
SDB-28F
|
DSP-28
|
SCB-28
|
|
30
|
42
|
9
|
5.8
|
6
|
4.5
|
43.5±0.1
|
41.8
|
0.8
|
38.3
|
2
|
SDB-30
|
SDB-30F
|
DSP-30
|
SCB-30
|
|
32
|
44
|
10
|
6.8
|
7
|
4.5
|
45.5±0.1
|
43.8
|
0.8
|
40.3
|
3
|
SDB-32
|
SDB-32F
|
DSP-32
|
SCB-32
|
|
35.5
|
47.5
|
10
|
6.8
|
7
|
4.5
|
49.5±0.15
|
47.3
|
1.0
|
43.8
|
3
|
SDB-35.5
|
SDB-35.5F
|
DSP-35.5
|
SCB-35.5
|
|
40
|
52
|
10
|
6.8
|
7
|
4.5
|
54 ±0.15
|
51.8
|
1.0
|
48.3
|
3
|
SDB-40
|
SDB-40F
|
DSP-40
|
SCB-40
|
|
45
|
57
|
10
|
6.8
|
7
|
4.5
|
59 ±0.15
|
56.8
|
1.0
|
53.3
|
3
|
SDB-45
|
SDB-45F
|
DSP-45
|
SCB-45
|
|
50
|
62
|
10
|
6.8
|
7
|
4.5
|
64 ±0.15
|
61.8
|
1.0
|
58.3
|
3
|
SDB-50
|
SDB-50F
|
DSP-50
|
SCB-50
|
|
56
|
70
|
11
|
7.7
|
8
|
5
|
72.5±0.15
|
69.6
|
1.1
|
65.5
|
3
|
SDB-56
|
SDB-56F
|
DSP-56
|
SCB-56
|

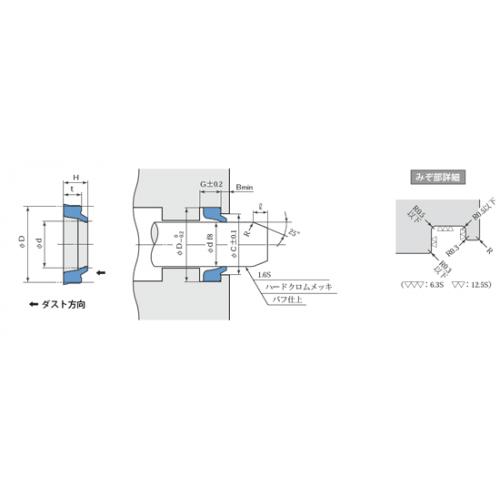

SFRスクレーパ寸法表
|
スクレーパおよびみぞ寸法（単位：mm）
|
指示コード
|
|
d
|
D
|
H
|
t
|
G
|
C
|
B
|
標準（RN 912）
|
|
16
|
24
|
6
|
4.5
|
5
|
20.3
|
2
|
SFR-16K
|
|
18
|
26
|
6
|
4.5
|
5
|
22.3
|
2
|
SFR-18K
|
|
20
|
28
|
6
|
4.5
|
5
|
24.3
|
2
|
SFR-20K
|
|
22
|
30
|
6
|
4.5
|
5
|
26.3
|
2
|
SFR-22K
|
|
22.4
|
30.4
|
6
|
4.5
|
5
|
26.7
|
2
|
SFR-22.4K
|
|
25
|
33
|
6
|
4.5
|
5
|
29.3
|
2
|
SFR-25K
|
|
28
|
36
|
6
|
4.5
|
5
|
32.3
|
2
|
SFR-28K
|
|
30
|
38
|
6.5
|
5
|
6
|
34
|
2
|
SFR-30K
|
|
31.5
|
39.5
|
6.5
|
5
|
6
|
35.5
|
2
|
SFR-31.5K
|
|
32
|
40
|
6.5
|
5
|
6
|
36
|
2
|
SFR-32K
|
|
35
|
43
|
6.5
|
5
|
6
|
39
|
2
|
SFR-35K
|
|
35.5
|
43.5
|
6.5
|
5
|
6
|
39.5
|
2
|
SFR-35.5K
|
|
36
|
44
|
6.5
|
5
|
6
|
40
|
2
|
SFR-36K
|
|
40
|
48
|
6.5
|
5
|
6
|
44
|
2
|
SFR-40K
|
|
45
|
53
|
6.5
|
5
|
6
|
49
|
2
|
SFR-45K
|
|
50
|
58
|
6.5
|
5
|
6
|
54
|
2
|
SFR-50K
|
|
55
|
63
|
6.5
|
5
|
6
|
59
|
2
|
SFR-55K
|
|
60
|
68
|
6.5
|
5
|
6
|
64
|
2
|
SFR-60K
|
|
63
|
71
|
6.5
|
5
|
6
|
67
|
2
|
SFR-63K
|
|
70
|
80
|
8
|
6
|
7
|
75
|
3
|
SFR-70K
|
|
75
|
85
|
8
|
6
|
7
|
80
|
3
|
SFR-75K
|
|
80
|
90
|
8
|
6
|
7
|
85
|
3
|
SFR-80K
|
