YAMAHA 贴片机KV8-M653F-A0X KV8-M653F-E0X头部感应器 YV100XG感应器
1 KV8-M7101-00X HOUSING HEAD 1
2 KG2-M7181-00X PACKING 28 MYA 4
2-1 90990-22J001 PACKING 28 MYA 4 (2002/1/21) M210051 OK
3 KM1-M7140-00X PACKING 16 MYR-6
3-1 90990-22J003 PACKING 16 MYR-6 (2002/1/21) M210051 OK
4 KM1-M7141-00X PACKING 20 MYA-10A
4-1 90990-22J002 PACKING 20 MYA-10A (2002/1/21) M210051 OK
5 KV8-M7103-00X PISTON PLUG 4
6 KV8-M71Y5-00X PACKING 4 MYA-12.5
6-1 90990-22J015 PACKING 4 MYA-12.5 (2002/1/21) M210053 OK
7 K65-M257M-00X O-RING 3 20 S12.5
7-1 90200-01J125 O-RING 3 20 S12.5 (2001/11/27) M1X0094 OK
8 KV8-M7103-10X PLUG 4
9 KV8-M7104-00X PISTON 8
10 KM1-M7107-00X PACKING 8 LO43165
10-1 90990-22J006 PACKING 8 LO43165 (2002/1/21) (M210052) OK
11 KV8-M71VS-00X COLLAR,SENSOR 12
11-1 90990-41J066 COLLAR 12 (2008/4/17) ME20197 OK
12 KGB-M7184-00X BOLT HEXA.S.H 4
12-1 91317-03060 BOLT,HEX.SOCKET HEAD 4 (2007/10/29) MD00030 OK
13 KV8-M71RJ-00X COLLAR BRG. 4
14 KG7-M7137-A0X LEAF SPRING 8
15 KG7-M7169-00X SCREW 8
16 KG7-M7170-00X WASHER 8
16-1 90990-28J002 WASHER PLAIN 8 (2003/3/28) M330113 OK
17 KV8-M7109-00X COLLAR 1 HEAD 4
18 90933-03J128 BRG. 24 MF128ZZS

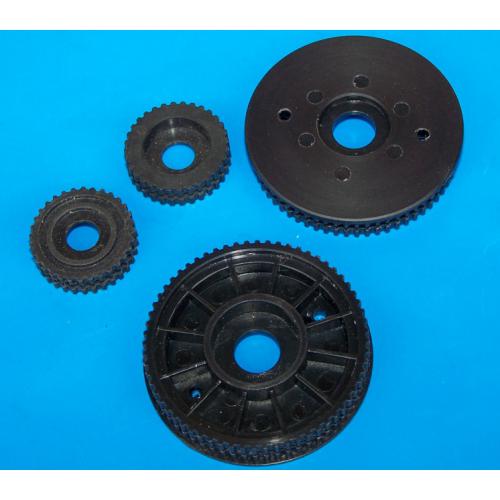

19 KGB-M7167-00X PULLEY 8
20 KV8-M7154-00X SPG.RETURN 4
21 KV8-M7108-00X NUT 8
22 90933-02J604 BRG. 8 604ZZ
23 99001-03600 CIRCLIP 1
23-1 90440-01J030 CIRCLIP 1 (2001/12/28) M1Y0129 OK
24 KU1-M7152-00X WASHER 1 THURUST 8
25 KV8-M7110-00X COLLAR 2 HEAD 4
26 KV8-M71X2-00X SPG.RETURN 4
27 KV8-M71X1-00X SPG.LOCATE 4
28 KV8-M71R1-10X SHAFT 1 1 Fig A
KV8-M71R1-20X SHAFT 1 1 Fig B
KV8-M71R1-30X SHAFT 1 1 Fig C
29 KV8-M71R2-01X BLOCK STOPPER 4
30 KV7-M71M6-01X SCREW,NOZZLE 2
30-1 90990-09J004 SCREW,FLAT HEAD 2 (2007/11/9) MD00082 OK
31 KV8-M71R5-02X PIN LOCATE 4
32 KV8-M71R9-00X CAM 8
33 KGB-M71RA-00X BEVEL - GEAR 1 4
34 KV8-M71RB-A0X BEVEL-GEAR 2 ASSY. 1
34-1 KV8-M71RB-11X BEVEL-GEAR 2 1 (2007/10/1) MD80023 OK
35 KV8-M71RC-00X PIN CAM 8
36 KV8-M71RD-00X CIRCLIP 16 E0.8
36-1 90440-01J008 CIRCLIP 16 (2001/12/28) M1Y0129 OK
36-2 90440-10J008 CIRCLIP 16 (2002/2/26) M220094 OK
37 KV8-M71RE-00X WASHER 1
37-1 90990-28J077 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
38 99009-12800 CIRCLIP 4 S12
39 KV8-M71U0-01X NOZZLE ASSY 4
39-1 KV8-M711N-A0X NOZZLE&SHAFT ASSY 4 (2001/8/27) M180124
40 KGB-M71R7-00X HOLDER BRG. 4
40-1 KGB-M71R7-01X HOLDER BRG. 4 2006/6/15 MB50099 NG
41 KV8-M71R8-00X COLLAR BRG. 4
41-1 KGB-M71R8-00X COLLAR BRG. 4 2006/6/15 MB50099 NG
42 90933-01J801 BEARING 4
43 KGB-M7111-00X PULLY POST 1
44 KV8-M7115-00X SHAFT 1 TENSION 4
45 KGB-M7116-00X PULLY 2 1
46 KV8-M7117-00X BLOCK, ADJUST 1
47 KV8-M7119-00X BLOCK, ADJUST 1
48 KV8-M7131-01X BRACKET, Z SENSOR 1
49 KV8-M7166-00X PLATE, VALVE 1
50 KGB-M71V1-01X SENSOR, STAY F 1 Z2
51 KGB-M71V2-01X SENSOR, STAY R 1 Z2
52 KV8-M71V3-00X BRACKET, LOCK SENSOR 1

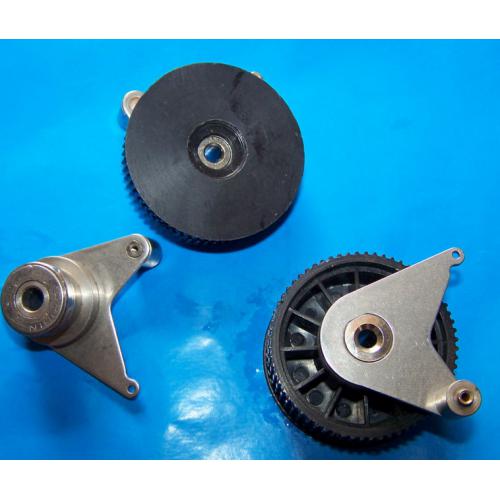

53 KGB-M71VC-00X HOLDER PULLEY 1 (2002/1/17) M210074
54 KGB-M71Y1-01X COLLAR 1,PULLEY 1
54-1 90990-41J011 COLLAR 1 (2008/4/15) ME20075 OK
54 KGB-M71Y1-01X COLLAR 1 PULLEY 1
55 90933-01J800 BEARING 2
56 99009-10800 CIRCLIP 1 ISTW-10
57 KGB-M71Y9-00X BODY, CYLINDER 1
58 KV8-M71YA-00X VALVE CLUTCH 4
59 KV8-M71YB-00X PACKING 8
59-1 90990-22J005 PACKING 8 (2002/2/1) M220005 OK
60 91317-05005 BOLT HEX.,SOCKET HEAD 8
60-1 91317-05006 BOLT HEX.,SOCKET HEAD 8 M5X5 (2002/1/8) M210011 OK
61 KM1-M7105-00X PLUG 2 8
62 KM1-M7112-01X STOPPER 1
63 KGB-M7181-00X BELT, HEAD 2
64 92A08-03303 SET SCREW 16 M3X3
65 KM1-M7186-00X O-RING 4 5X1.0
65-1 90990-17J007 O-RING 4 5X1.0 (2001/12/25) M1Y0084 OK
66 KV8-M653F-E0X SENSOR 3 ASSY 4 E2S-Q22 (CLUTCH)
67 KV8-M653F-A0X SENSOR 3 ASSY 4 E2S-Q22 (1,3,5,9)
68 KV8-M653G-A0X SENSOR 4 ASSY 4 E2S-Q22B (2,4,6,8)
69 KV8-M653H-A0X SENSOR 5 ASSY 4 (NOZZLE POS.)
70 KGB-M653A-00X SENSOR HEAD ASSY 3
70-1 KGB-M653A-01X SENSOR HEAD ASSY 3 (2004/3/18) M430057 OK
70-2 KGB-M653A-02X SENSOR , HEAD ASSY 3 (2005/7/21) MB70010 OK
71 KGB-M653F-10X SENSOR, 3 ASSY. 1 EE-SX872P (R-ORG)
72 93604-06083 PIN DOWEL 6 4X6
72-1 90990-20J001 PIN DOWEL 6 (2002/1/9) M1Y0141 OK
72-2 90990-20J001 PIN DOWEL 4 (2002/2/19) M220087 OK
72-3 90990-20J001 PIN DOWEL 5 (2007/2/27) MD10054 OK
73 99480-04008 PIN,PARALLEL 8 4X8
73-1 99480-04008 PIN,PARALLEL 6 4X8 (2007/2/27) MD10054 OK
74 90110-03248 BOLT HEXA.S.H: M3X55 3
74-1 91317-03055 BOLT HEX.SOCKET HEAD 3 (2003/7/15) M370057 OK
74-2 91317-03055 BOLT HEX.SOCKET HEAD 5 (2006/8/11) MC80042 OK
75 92D18-02008 BOLT HEX: M2X0.4X8 12
75-1 90115-02J008 BOLT HEX.SOCKET HEAD 12 (2002/8/21) M280085 OK
76 $KM-05 MUFFLER 7
76-1 $KM-05 MUFFLER 8 (2006/11/16) MCX0020 OK
77 $SLH8-01 JOINT 2
78 $TSH6-01 JOINT 2
79 KV8-M7162-00X SOLENOID VALVE(UNIT) 1
80 KGB-M7163-00X EJECTER,RESIN 1
80-1 KGB-M7163-01X EJECTOR,RESIN 1 (2006/12/11) MCY0027 OK
80-2 KGB-M71G1-00X EJECTOR,RESIN 1 (2008/5/23) H011471 NG
81 KGB-M71V9-00X COVER 2
82 90563-23J060 SPACER 4
82-1 Delete (2008/5/7) ME40130
83 KV8-M71VB-00X COVER SENSOR 1
84 KGB-M7169-00X SPACER 1
84-1 90990-41J076 COLLAR 1 (2008/4/11) ME30019 OK
85 KGB-M7170-00X GEAR 1 1
86 KGB-M7171-00X GEAR 2 1
87 KGB-M7172-00X COLLAR 1,GEAR 1
87-1 90990-41J009 COLLAR 1 (2008/4/15) ME20075 OK
88 KGB-M7173-00X COLLAR 2,GEAR 1
88-1 90990-41J010 COLLAR 1 (2008/4/15) ME20075 OK
89 KGB-M7174-00X SHAFT, GEAR 1
90 90933-02J085 BEARING 2 MR85ZZS
91 KGB-M7179-00X COVER, GEAR 1
92 KGB-M7185-00X PLATE 2, NUT 1
93 KGB-M7183-00X PLATE, EJECTOR 1
94 KV8-M71VR-00X PLATE, NUT 8
95 KM1-M4592-11X VAC SENSOR BOARD ASS 8
95-1 KM1-M4592-12X VAC SENSOR BOARD ASS 8 (2001/9/30) M190105 OK
95-2 KM1-M4592-13X VAC SENSOR BOARD ASS 8 (2005/4/19) MB40065 OK
96 KGB-M711S-A0X FNC SHAFT, SPARE 1 SPARE PARTS
97 KGB-M712S-A0X STD. SHAFT 1, SPARE 1 SPARE PARTS
98 KV8-M7103-A0X PISTON PLUG ASSY 4
99 KV8-M7103-B0X PLUG ASSY 4
100 KV8-M7104-A0X PISTON ASSY 8
101 KGB-M71S0-50X STD. SHAFT 3, SPARE 1 SPARE PARTS (2002/10/18) M200051
102 KGB-M711S-B0X FNC SHAFT, SPARE 1 NOZZLE CIRCLE (2002/12/13) M2Y0031
103 KV8-M712N-A0X NOZZLE&SHAFT ASSY 1 NOZZLE CIRCLE (2001/9/5) M190016
104 KGB-M71R9-00X PLATE, BRG 4 (2005/5/26) MB50099
105 92A08-04305 SET SCREW 3 M4X5
105-1 92A08-04305 SET SCREW 2 M4X5 (2007/2/27) MD10054 OK
106 KGB-M71Y9-A0X BODY, CYLINDER ASSY 1 (2001/2/2) M110144
107 KM1-M7105-A0X PLUG2 ASSY 8
108 KGB-M71VD-00X NUT GEAR 1 (2004/2/03) M420001
109 KGB-M7163-A0X EJECTOR 1 SPARE PARTS non bit type
109-1 KGB-M71G2-00X EJECTOR 1 SPARE PARTS bit type (2008/5/23) H011471 NG
110 KM1-M7163-20X VALVE 1 SPARE PARTS
111 KM1-M7163-30X VALVE 1 SPARE PARTS
112 K46-M8527-C0X FILTER 1 SPARE PARTS (2001/2/2) M120012
113 90990-17J008 O-RING 1 SPARE PARTS
113-1 Delete (2006/12/11) MCY0027
114 KM5-M7174-F0X FILTER CAP 1 SPARE PARTS (2001/2/2) M120012
114-1 Delete (2006/12/11) MCY0027
115 90990-17J010 O-RING 1
116 KM5-M7174-G0X FILTER CAP 1
117 KV8-M7162-20X VALVE 1 SPARE PARTS
118 KV8-M7162-10X VALVE 1 SPARE PARTS
119 KGB-M653A-S0X SENSOR , HEAD ASSY 1 TRANSMITTER of 70-2
120 91317-03022 BOLT HEX.,SOCKET HEAD 5
121 91317-04030 BOLT,HEX. S.H 4 M4X30 (2006/10/02) MC90097
122 KM5-M7174-H0X SPACER 8
123 KHW-M71G4-00X BIT 1 SPARE PARTS
124 KM5-M7174-70X PACKING SET 1 2 both sides
125 KM5-M7174-80X PACKING SET 2 6 middle
126 KGB-M7163-B0X EJECTOR 1 SPARE (2008/12/20) H0
