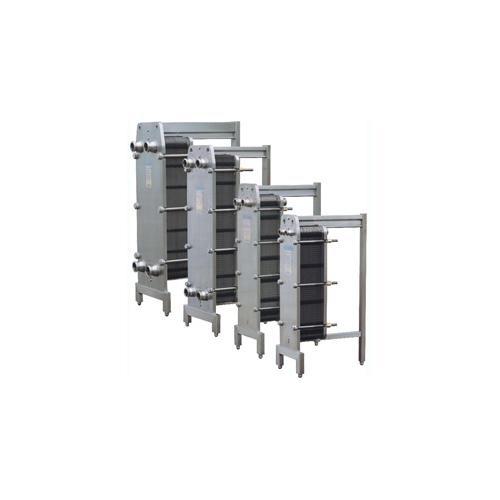

产品说明：
BR、BP系列板式换热器是现代工程应用领域中的高效热交换设备。具有结构紧凑，单位换热面积大，占地面积小、换热效率高以及拆卸，清洗与维修方便等优点。广泛应用于化工，治金，石油，电站、化肥、啤酒、饮料、空调，造纸，医药，生物工程等工业部门。用于对不锈钢无腐蚀性液体作为加热，杀菌、冷却、热回收等各种工艺流程。
本系列板式换热器换热面积组合有0.3~700m2等多种规格，并可以辅以自动控制。特别适用于卫生要求较高的生化，制药，食品等行业。
Product Description:
BR, BP series of plate heat exchanger is a high efficiency heating exchanger device in the field of modern engineering applications. This machine has the advantages of compact structure, large heat exchange area, small occupation area, high heat exchange efficiency and has the advantages of convenient disassembly, cleaning and repair etc. It is widely used in chemical industry, metallurgy, petroleum, power plant, chemical fertilizer, beer, beverage, air conditioning, papermaking, pharmaceutical, bio engineering and other industrial. It is used for heating, sterilizing, cooling and heat recovering non corrosive liquids.
The heat exchange area of 本系列板式换热器换热面积组合有0.3~700m2等多种规格，并可以辅以自动控制。特别适用于卫生要求较高的生化，制药，食品等行业。
this series of plate heat exchanger is combined with a variety of 0.3~700m2 specifications, and also can be combined with automatic control, which is especially suitable for high sanitary requirement of biochemical, pharmaceutical, food and other industries.
技术参数：
收奶冷却 1) 物料 30℃→4℃ 冰水 1℃ 流量3:1 2) 物料 20℃→4℃ 冰水 2℃ 流量3:1
|
流量
|
换热面积
|
物料口径
|
介质口径
|
外形尺寸
|
|
(l/h)
|
(㎡)
|
(mm)
|
(mm)
|
(mm)
|
|
1,000
|
1
|
Φ25
|
Φ25
|
350×210×600
|
|
2,000
|
2
|
Φ25/38
|
Φ38
|
600×285×810
|
|
3,000
|
3
|
Φ38
|
Φ38
|
600×285×810
|
|
4,000
|
4
|
Φ51
|
Φ51
|
600×470×1420
|
|
5,000
|
5
|
Φ51
|
Φ51
|
600×470×1420
|
|
6,000
|
6
|
Φ51/63
|
Φ51/63
|
600×470×1420
|
|
8,000
|
8
|
Φ51/63
|
Φ63
|
600×470×1420
|
|
10,000
|
10
|
Φ51/63
|
Φ63
|
800×590×1600
|
|
12,000
|
12
|
Φ63
|
Φ76
|
800×590×1600
|
|
15,000
|
15
|
Φ63/76
|
Φ76/101
|
800×680×1600
|
|
20,000
|
20
|
Φ63/76
|
Φ101
|
800×680×1600
|
|
30,000
|
30
|
Φ76
|
Φ101
|
800×680×1600
|
注：除表系列规格外，也可根据客户要求另行设计。
Technical Parameter
Milk collection cooling 1) Material 30℃→4℃ Ice water 1℃, Flow rate:3:1 2) Material 20℃→4℃ Ice water 2℃, Flow rate: 3:1
|
Flow rate
|
Heating Area
|
Material Diameter
|
Medium Diameter
|
Dimension
|
|
(l/h)
|
(㎡)
|
(mm)
|
(mm)
|
(mm)
|
|
1,000
|
1
|
Φ25
|
Φ25
|
350×210×600
|
|
2,000
|
2
|
Φ25/38
|
Φ38
|
600×285×810
|
|
3,000
|
3
|
Φ38
|
Φ38
|
600×285×810
|
|
4,000
|
4
|
Φ51
|
Φ51
|
600×470×1420
|
|
5,000
|
5
|
Φ51
|
Φ51
|
600×470×1420
|
|
6,000
|
6
|
Φ51/63
|
Φ51/63
|
600×470×1420
|
|
8,000
|
8
|
Φ51/63
|
Φ63
|
600×470×1420
|
|
10,000
|
10
|
Φ51/63
|
Φ63
|
800×590×1600
|
|
12,000
|
12
|
Φ63
|
Φ76
|
800×590×1600
|
|
15,000
|
15
|
Φ63/76
|
Φ76/101
|
800×680×1600
|
|
20,000
|
20
|
Φ63/76
|
Φ101
|
800×680×1600
|
|
30,000
|
30
|
Φ76
|
Φ101
|
800×680×1600
|
