Model: LT-13

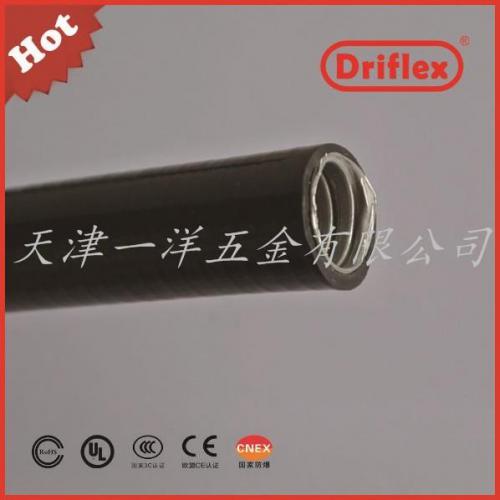

Description:
镀锌铁皮制成,表面被覆耐延烧PVC材料.
***柔软性及***防水效果.
吸收移动和震动的性能,多方向弯曲挠性.
3/8"至1-1/4"嵌入一棉纱填封,1-1/2"至4"以反扣结构制作.
耐温范围从-20度至+105度.
适合使用于油气,水气重之场所.
PVC包塑，有选择黑色、灰色、橙色.

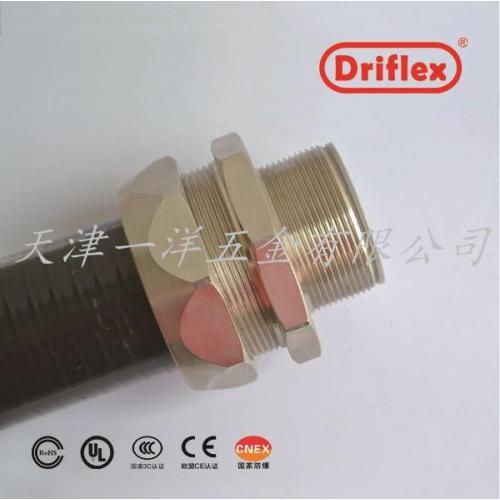

适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
|
Part No |
Nominal Size ISO (mm) |
Nominal Size US (inches) |
I.D. (mm) |
O.D. (mm) |
Min. Bend Radius (mm) |
Length (M/coil) |
|
LT-10 |
16 |
3/8" |
12.3 - 12.8 |
17.5 - 18.0 |
60 |
30 |
|
LT-11 |
20 |
1/2" |
15.8 - 16.3 |
20.8 - 21.3 |
80 |
30 |
|
LT-12 |
25 |
3/4" |
20.7 - 21.2 |
26.2 - 26.7 |
100 |
30 |
|
LT-13 |
32 |
1" |
26.2 - 26.8 |
32.7 - 33.4 |
150 |
30 |
|
LT-14 |
40 |
1-1/4" |
34.8 - 35.4 |
41.4 - 42.2 |
180 |
20 |
|
LT-15 |
50 |
1-1/2" |
40.1 - 40.6 |
47.4 - 48.3 |
200 |
20 |
|
LT-16 |
63 |
2" |
51.3 - 51.9 |
59.4 - 60.3 |
250 |
15 |
|
LT-17 |
75 |
2-1/2" |
63.0 - 63.6 |
72.1 - 73.0 |
300 |
10 |
|
LT-18 |
90 |
3" |
78.0 - 78.7 |
87.9 - 88.9 |
450 |
10 |
|
LT-19 |
100 |
4" |
101.6 - 102.6 |
113.2 - 114.3 |
600 |
5 |
