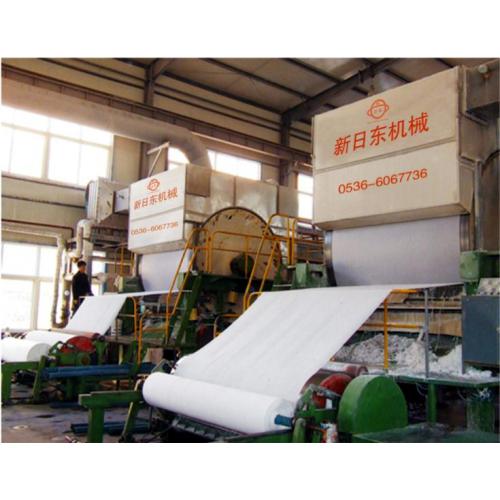

ZY系列中高速卫生纸机
ZY series high & middle speed tissue machine
本产品主要适合低定量、高档次生活用纸的抄造。采用方锥多管进浆，压力网槽，不锈钢片式网笼。气胎加压，高线压沟纹托辊，双呼吸热风罩，复合式气动刮刀，脉冲气动校毯器，电动涨紧器等新技术，是普通圆网抄纸机的替代产品。
The equipment is mainly used for paper making of the low-quantity, high-end life paper. Cone used to for the new technology of multi-tube into pulp, the pressure wire, SS chip moulds. Pneumatic tire pressure, high pressure line striation Idler, double-breathing dryer, double pneumatic scrapper,pulse pneumatic felt corrector, and Electric tighter. It is ordinary rotary screen papermaking machine alternative products.
主要规格及参数：
|
型 号
|
ZY1092
|
ZY1575
|
ZY1760
|
ZY2362
|
|
设计车速（m/min）
|
250
|
250
|
250
|
250
|
|
抄纸车速(m/min)
|
150-200
|
150-200
|
150-200
|
150-200
|
|
抄造定量（Ω/m2）
|
13-30
|
13-30
|
13-30
|
13-30
|
|
生产能力（t/d）
|
3-4
|
4-5
|
5-6
|
6-8
|
|
烘缸直径(mm)
|
Ø2500×1450
|
Ø2500×1950
|
Ø2500×2100
|
Ø2500×2500
|
|
网笼直径(mm)
|
Ø1524(60″)
|
Ø1524(60″)
|
Ø1524(60″)
|
Ø1524(60″)
|
|
主机动力
（KW）
|
电磁调速
|
YCT280-4A/30
|
YCT315-4A/37
|
YCT315-4B/45
|
YCT355-4A/55
|
|
变频调速
|
Y225M-6/30
|
Y250/-6/37
|
Y280S-6/45
|
Y280M-6/55
|
|
卷取动力
（KW）
|
电磁调速
|
YCT132-4B/1.5
|
YCT160-4A/2.2
|
YCT160-4A/2.2
|
YCT180-4A/4
|
|
变频调速
|
Y90L-4/1.5
|
Y100L1-4/2.2
|
Y100L1-4/2.2
|
Y122M-4/4
|
|
气站工作压力(Mpa)
|
0.7
|
0.7
|
0.7
|
0.7
|
|
主机轨距（mm）
|
1900
|
2400
|
2600
|
3400
|
|
结构尺寸(长×宽×高)
|
12680×5570×4580
|
13180×5770×5080
|
13180×6570×4580
|
12680×5070×5080
|
|
设备重量（t）
|
35
|
43
|
47
|
64
|
呼吸式热风罩
Breath-type dryer
不锈钢片网笼
Stainless steel moulds
损纸碎浆机
Broken paper pulper
损纸碎浆机是用于造纸工业中将纸机压榨部、卷纸部的半干损纸、干损纸回收、搅碎，再次投入制浆系统中的造纸配套设备，其特点是：工作连续，结构简单，操作方便，效率高，寿命长。
Broken paper pulper is uses in the paper industry the paper machine press part, the rolled paper department subarid damaging the paper, to damage the paper recycling, to stir dry broken, invests in the pulping system's papermaking supplementary equipment once more, its characteristic is: The work is continual, the structure is simple, the ease of operation, the efficiency is high, the life is long.
