ZSG立式高浓水力碎浆机
ZSG series vertical high-density hydrapulper

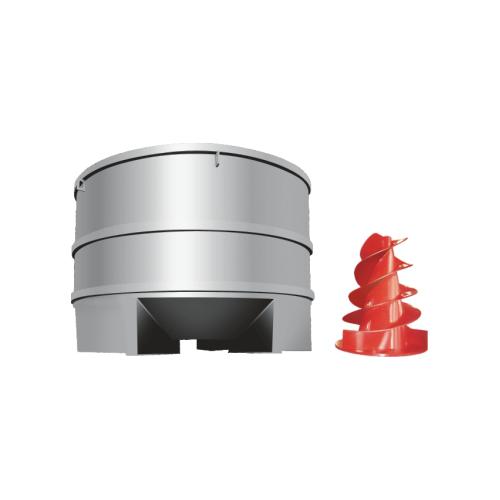

本机具有多头螺旋叶片转子，碎浆浓度高达14%以上,运转时能产生强大的自下而上又自上而下的浆流以及纤维之间的摩擦力。成浆质量均匀，特别是在用于脱墨制浆时，在高浓度纸浆纤维之间的摩擦力的作用下，通过化学药品的作用，能使油墨高效快速地从纤维表面脱落。是商品木浆、各种废纸碎解处理和脱墨制浆的关键设备。
The equipment has the rotor with many spiral leaf blades ,the pulp density can reach over 14%, The running machine may bring the huge textile fiber friction force that pulpflow from down to top and up to down with. The thick liquid quality is even. specially when uses in deinking thick liquid, under the friction of the highly concentrated paper pulp fibre force through the chemicals function, which can take off the printing ink effective rapidly from the fiber surface. It is the importance equipment to process the each waste paper and deinking pulp.
主要规格及参数：
|
型 号
|
ZSG1
|
ZSG2
|
ZSG3
|
ZSG5
|
ZSG8
|
ZSG10
|
ZSG15
|
ZSG20
|
|
公称容积m3
|
1
|
2
|
3
|
5
|
8
|
10
|
15
|
20
|
|
生产能力t/d
|
3-4
|
6-8
|
9-12
|
10-15
|
15-20
|
20-30
|
30-50
|
40-60
|
|
碎浆浓度%
|
12±2
|
|
槽体直径mm
|
Ø 1300
|
Ø 1600
|
Ø 1800
|
Ø 2200
|
Ø 2500
|
Ø 2800
|
Ø 3400
|
Ø 3600
|
|
叶轮直径mm
|
Ø 440
|
Ø 520
|
Ø 680
|
Ø 720
|
Ø 820
|
Ø 880
|
Ø 1040
|
Ø 1120
|
|
叶轮转速r/min
|
420
|
360
|
340
|
320
|
280
|
260
|
240
|
220
|
|
放浆口径mm
|
Ø100
|
Ø 150
|
Ø 200
|
Ø 200
|
Ø 250
|
Ø 250
|
Ø 300
|
Ø 300
|
|
稀释口径mm
|
Ø 50
|
Ø 80
|
Ø 80
|
Ø 80
|
Ø 100
|
Ø 125
|
Ø 150
|
Ø 159
|
|
配用电机KW
|
Y200L-4/22
|
Y250M-6/37
|
Y280M-6/55
|
Y315S-6/75
|
Y315L2-6/110
|
Y315L2-6/132
|
Y355M-6/160
|
Y355M-6/250
|
