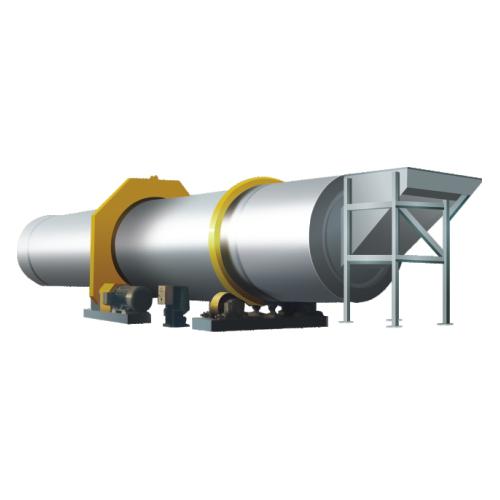

ZGG系列转鼓式碎浆机
ZGG series drum pulper
本机可以直接处理未经拣选的各种商业废纸。单机可以完成碎解和粗筛选 ,也可以同时进行化学脱墨处理。具有不损伤纤维、杂质破碎率和能耗极低的特点。能***大限度的保留再生纤维的强度和完整去除未拣选原料中的塑料、织物，特别是造纸流程中危害***大的湿强物、粘胶物等杂质。
The equipment may directly process the various scrap paper without selecting, Single machine may perform continuous break-up and rough screening. It can also carry out chemical deinking processing at one time, with the characteristic of lowest energy, Low break-up rate of impurity and fibre. Can mostly keep textile fibre and the completely remove the plastics and the fabrics in the raw materials without selecting. Especially, wet strength paper, the harms pectic matter in the papermaking flow.
主要规格及参数:
|
型 号
|
ZGG-275
|
ZGG-300
|
ZGG-325
|
ZGG-350
|
|
直 径 m
|
2.75
|
3.00
|
3.25
|
3.50
|
|
长 度 m
|
16.3
|
17.6
|
21.8
|
23.2
|
|
生产能力 t/d
|
140-200
|
180-240
|
220-330
|
320-450
|
|
装机功率 KW
|
160
|
250
|
355
|
500
|
|
工作浓度 ％
|
14-18
|
14-18
|
14-18
|
14-18
|
|
出浆浓度 ％
|
3-4
|
3-4
|
3-4
|
3-4
|
|
工作温度 ℃
|
40-90
|
40-90
|
40-90
|
40-90
|
|
空 量 t
|
27.9
|
33.0
|
53.5
|
65.0
|
|
容 量 t
|
49.9
|
63.0
|
86.5
|
115.0
|
