[新品] 活性炭颗粒过滤器 活性炭板式过滤网 活性炭折叠过滤网(L-LV21)

广州市翎滤净化设备有限公司
联系人 蔡秋云
地区 广东省 广州
联系方式 请登录后查看
告诉我在“CCEN化工设备网”看到,将给您优惠!
产品参数
品牌: L-LV
型号: 21
类型: 其他
林格曼黑度: 其他
除尘率: 20 %
阻力损失: 20 Pa
液气比: 1
出口含尘浓度: 100 g/Nm³
使用温度范围: 100 ℃
处理风量: 1000 m³/h
过滤速度: 1 m/min
详细信息

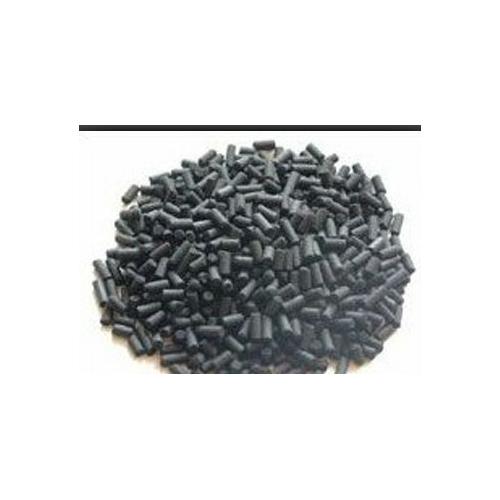

颗粒活性炭KLW系列

活性炭是由椰子壳制成的圆柱状颗粒,吸附能力强,可配合金属框做成过滤器,通用性好,结构坚固可拆卸,方便更换滤材与达到外框重复利用的目的,经济性能高。



主要技术参数

Specification:



规格型号

Model

额定风速

m/s

Rated air flow

活性炭含量g/㎡

Carbon content

吸附性能

adsorption

除臭性能(30分钟)

Deodorization

(30 minute)

克重g/㎡

Basis weight

厚度mm

Thickness

CFZ

0.3

>130

75%

>75%

300

3.0

HMF

0.8

>400

88%

>90%

700

10.0

CFH

1.0

>50

75%

>85%

200

2.0

 KLW













对有毒气体的平衡吸附量(mg/gthe Avg. adsorption capacity to the poison gas



甲醛

formaldehyde

***

aether

甲醇

carbinol

甲苯

toluol

二甲苯

xylene

氯仿

chloroform

丙酮

acet.

汽油

benzine

氨水

ammonia

硫化氢

sulfureted hydrogen

二氧化硫

氯化氢

320

470

260

320

290

530

230

290

290

1060

830

450



Chemical filtration material

The activated carbon is the general porosity material which is applied to eliminate the impurity from the gas or the liquid. The activated carbon is the ideal material for eliminating the chemical contaminate ,according to the ratio of the activated carbon’s high surface’s area and its volume.



Series CF-H activated carbon media

Adopt the macromolecule binding material to make the activated carbon on the synthetic fibre in steeping way, in order to achieve the filtration effect and to eliminate harmful gas from air. This activated carbon media is made into the plank filter mesh , foldaway filter mesh ,pocket filter mesh for the filtration system.



Series CF-Z  activated carbon fibre  filter mesh

This mesh use the high quality catalytic powdery activated carbon as the adsorption material. It can be made into many shapes to be applied to the air-condition cleaner



Series KM-F sponge activated carbon filter mesh

Good ventilation peoperty , high adsorption ; Its sterilizing effect is good, matching with the HEPA filter; It is suitable for each kind of air purification, the sterilization installment.

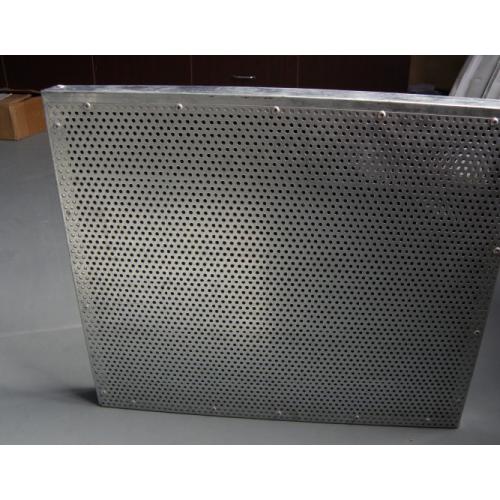

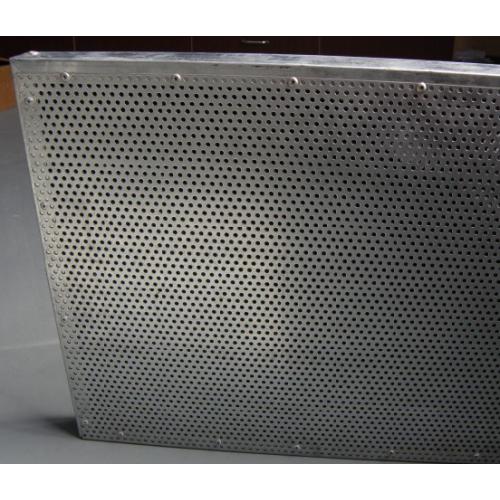

Series KL-W granular Activated carbon filters

The activated carbon which is made from the cocoanut shell , is column granule. It can be made into the filter, matching with the metal frame. Firm structure, dismountable, convenient for changing the filtration material and using the outer frame repeatly, and economical.
