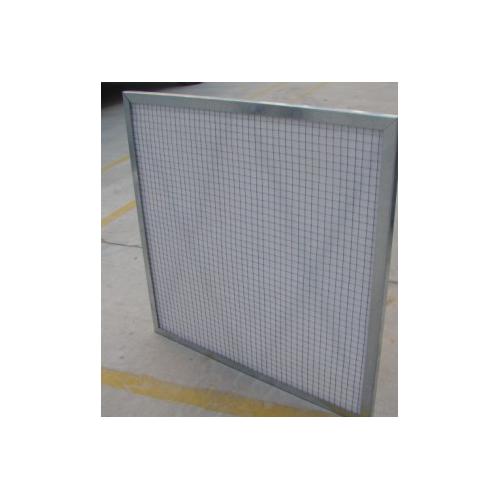

板式粗效过滤网
Plank coarse efficiency filter mesh
产品特性：
·滤料为粗效过滤棉，透气性高，阻力低；
·外框为金属外框，容易更换；
·符合欧洲和美国防火分类标准DlN53438-F1，UL900－class2；
·耐湿度可达100%；
·耐温80℃。
用途：
空调通风系统的预过滤；
性能参数：
Specification:
|
级别
Class
|
尺寸W*H * D
Size W*H*D
|
额定风量 (m3/h)
Rated air flow
|
初阻力
( Pa )
Initial resistance
|
建议终阻力
( Pa )
Recommended resistance
|
|
宽*高*深 ( mm )
Width* height*depth
|
|
G3
|
595*595*20mm
|
1900
|
35
|
180
|
|
G3
|
290*595*20mm
|
1000
|
|
G3
|
595*595*46mm
|
3400
|
|
G3
|
290*595*46mm
|
1700
|
|
G4
|
595*595*25mm
|
1900
|
45
|
220
|
|
G4
|
290*595*25mm
|
1000
|
|
G4
|
595*595*46mm
|
3400
|
|
G4
|
290*595*46mm
|
1700
|
备注:可按规定定做.
Speciality:
The filter material is the coarse efficiency filter media; Good ventilation property, small resistance.
Metal frame.
Conform to European and American classification for nonflammability (e.g DIN 53438-F1, UL900 class 2 with flameout)
Resistance to Humidity: 100%；
Temp resistance: 80℃
Using :
Primary filtration for the ventilation system of the air condition
