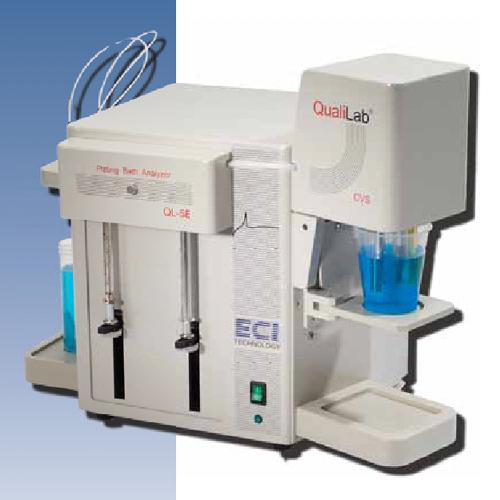

多样品CVS自动分析系统
QUALILAB QL-5E是新一代CVS分析仪。能准确分析多数电镀浴中有机添加接与污染物的含量。
QL-5E亦能分析电镀液中的无机组分。其操作过程全由电脑控制，建议使用计算机中的分析程序，它能自动准确地分析出电镀液中添加剂的活性组分及其含量。
我们将长期的电化学分析经验应用于自动分析过程，不断增加其准确性，缩短分析时间，并通过开发新的操作程序延伸在其它领域的应用。
操作简易 高可靠性 高精度 更新内置程序 性能卓越 价位适中
★功能特点：
●友好的操作界面，人机交流简单明了。
●内置多种分析程序，可适用于几乎所有的电镀浴，能分析其中有机化合物及无机物的含量。
●由有机污染物及添加剂的分解产物组成的响应曲线将出现在显示器上，这些物质经过碳处理后将被清除。
●可更换式电极能排除镀液中有机污染物的影响及提高分析速度。
●内置自动注射式光亮剂添加器，能提高操作人员的工作效率及分析精度。
●应用软件可升级，包括SPC信息。
●重要的菜单可设置密码保护。
●本系统配置一台电脑、显示器及打印机。
★典型的应用：
能应用于几乎所有的电镀浴分析。使用QL-5E,你能准确可靠地分析出有机添加剂、无机组分及有机污染物的含量。
QL-5E适用于：
●确定电镀添加剂的加入量或减少量。
●掌握***佳的碳处理时机。
●确定电镀添加剂中各组分的消耗比例。
●使电镀产品获得***佳的品质，推动电镀业的发展。
●***重要的是QL-5E能准确快捷地分析电镀浴中添加剂的含量，以达到***佳的电镀效果。
The Qualilab QL-5E is the newest generation of CVS instrumentation
capable of quantitative determination of organic additives in almost every electroplating solution.
The QL-5E can also assay for inorganic components. Fully controlled by software, the QL-5E performs analyses automatically, prompting the user throughout the procedure as it calculates and reporfs the active
concentration of additives and their components in the bath. Eel's decades of electroanalytical experience have been programmed into automated, user-friendly procedures to increase accuracy, decrease analysis time and extend
the versatility of the instrument with new applications.
Analysis of Chloride
AnalYsis of Contamination
Analysis of Copper
Analysis of Enthone Via/orm Leveler Analysis of MacOermid PPR Additive Analysis of Nickel Analysis of Saccharin Analysis of Shipley! Ultrafilt Suppressor Analysis of Tin
Features and Benefits
The QL-5E comes '1ully packed" with all the features we know are important to you. You'll find:
User friendly menu-driven operating system with on-screen help menu for trouble shooting
Pre-programmed procedures for characterizing almost every proprietary combination of organic and inorganic components of plating solutions
PC with color monitor and printer
Voltammograms (fingerprints) are displayed live to monitor build-up of undesirable plating bath contaminants or their removal from the bath during carbon treatment
Multi-head capability eliminates cross contamination of solutions and allows increased speed of analysis
Automatic syringes for improved operator efficiency and accuracy, laboratory personnel will be freed up for other tasks
Expanded applications software, including SPC information
Password protection for critical menus
Typical Applications
Ideal for Almost Every Plating Process
With the QL-5E, you'll get accurate, reliable monitoring of organic additives, inorganic components and contaminants.
In addition the QL-5E is excellent for:
Incoming and outgoing inspection of additives
Optimization and monitoring of carbon treatment procedure
Studying the component consumption rate
OptimiZing new plating processes and developing new formulations
But most importantly the QL-5E will provide fast, accurate results and will keep your process sailing smoothly.
中文说明书下载位置：http://seekhigh.com/down/html/?6.html
英文说明书下载位置：http://seekhigh.com/down/html/?7.html
美国ECI CVS 电镀光亮剂分析仪QL-10EX
QL-5EX, QL-10EX,
旧型号(停产)：QL-5E,QL-5, QL-10E,QL-10,QP-4000,QLC-5000
产品介绍
多样品CVS自动分析系统
QUALILAB QL-10E是一种具有多样品性能的新一代CVS分析仪。可自动分析多至15个样品，备用电极自动分析次序相结合，免除了操作人员的手工更换。
我们将长期的电化学分析经验应用于自动分析过程，不断增加其准确性，缩短分析时间，并通过开发新的操作程序延伸在其它领域的应用。
新一代多样品分析程序
精度更高 应用更广泛
★主要功能特点：
●旋转盘有15个试样杯，其中14个为试样杯，另外一个是校正样品。
●可更换式电极适用于多种电镀浴以及其它电化学分析方法。
●自动注射式光亮剂添加系统，可使分析过程连续进行。
●具有创造性的程序可实现自身***佳化参数设置。
●上述程序可分别用于分析各种电镀浴中不同品牌的添加接及其它有机物的含量分析。
●QL-10E还增加了几种新的电化学分析方法。
●软件与硬件易于升级。
●采用模块式图案升级。
★典型的应用：
●分析电镀浴中有机添加剂、无机物及其它污染物的含量。并可用于化学镀分析，如Cu,Sn,Sn-Pb,Pb,Ni,Ag,Cr等所有阳极镀液及清洗液分析。
●确定电镀添加剂的加入量或减少量。
●掌握***佳的碳处理时机。
●确定电镀添加剂中各组分的消耗比例。
●使电镀产品获得***佳的品质，推动电镀业的发展。
QUALILAB QL-10E is a new generation of CVS instrumentation with multi-sampling capabilities.
It provides automated analysis of up to 12 different plating solutions. Fully controlled by software, the entire analysis sequence is automated,
lessening the need for operator
The QL-l0E quantitatively determines organic additives and inorganic components in
almost every electroplating solution,
whether it"s in a PCB factory or a Semiconductor fab.
ECI"s decades of electroanalytical experience
have been programmed procedures to increase accuracy,decrease analysis time
and extend the versatility of the instrument with new applications.
Features and Benefits
The QL-10E comes "fully packed" with all the features we know are important to you. You"ll find:
15-position turntable and
14-position sample holder Exchangeable electrode head for
measurement of different plating baths and use of different electroanalytical techniques
Automatic syringe delivery system Flexible analytical procedures Smart procedures
with self-optimized parameters Pre-programmed procedures for dozens of proprietary organic and
inorganic components of plating solutions Several new electroanalytical modes
have been added to the capabilities of
the ECI Model QL-10E Easy software and
hardware upgrades with new techniques and procedures Modular design allows easy upgrades
Typical Applications
Ideal for Almost Every Plating Process
With the QL-10E, you"ll get accurate,
reliable monitoring of organic additives, inorganic components and contaminants.
Determination of organic additives, inorganic components, and contamination in electroplating, electroless, immersion baths for Cu, Sn, Sn~Pb, Pb,Ni, Ag, Cr,
as well as AI anodizing solutions and cleaners Incoming and outgoing inspection of additives Optimization and monitoring of carbon treatment procedure
Studying the component consumption rate Optimizing new plating processes and developing new formulations
