[新品] WLDH系列卧式螺带混合机

工作原理：

该机型由容器、螺旋搅拌叶片和传动部件组成：螺旋叶片一般做成双层或三层，外层螺旋将物料从两侧向中央汇集，内层螺旋将物料从中央两侧输送，形成对流混合。

Working Principle

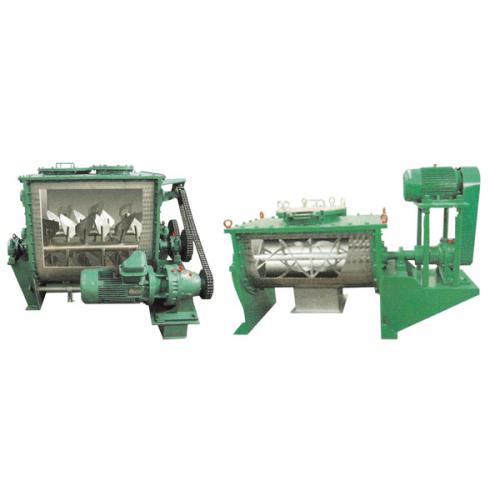

This machine is composed of container,screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre from two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to from convection mixing.

性能特点：

装载系数大、设备占地面积小：

混合粘性或具有凝聚性的物料时，清洗困难。

Characteristics

Big coefficient of loading, small occupied area.

It is difficult to clean when it is used to mix viscous or adhesive material.

适应物料*

螺带混合机一般用于粘性或有凝聚性的粉粒体的混合以及粉粒体中添加液体及糊状物料的混合，同时由于粘性物料清洗困难的特点，适用于产量大、不经常更换品种的场合混合。

Material to be dried

The ribbon mixer is generalIy used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material.Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.

技术规格

Technical Parameter
