加工定制:是 |
品牌:阿法拉伐 |
型号:M15B |
|
用途:酒店 |
类型:板式 |
制冷量:5000KWkw |
|
控温范围:0-150 |
流量压力:1000立方/H |

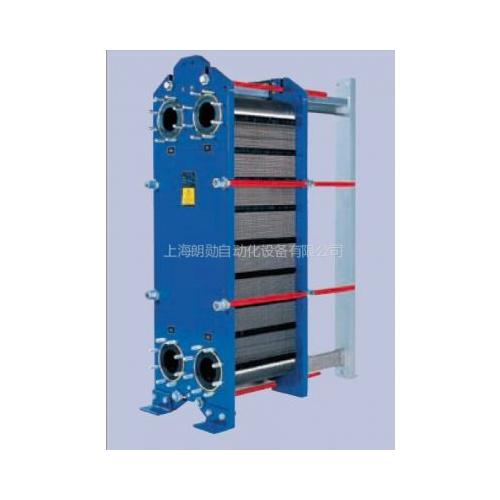

阿法拉伐M15BFG板式换热器
STANDARD MATERIALS
Frame plate
Mild steel, Epoxy painted
Nozzles
Carbon steel
Metal lined: Stainless steel, Titanium
Rubber lined: Nitrile, EPDM
Plates
Stainless steel: Alloy 304, Alloy 316
Titanium
Alloy C-276
Alloy 254 SMO
Gaskets ( Clip-on/tape-on, glued)
M15B Nitrile, EPDM, HNBR, EPDMF,
Viton?G, AL-EPDM
M15M Nitrile EPDM, HNBR, EPDMF,
Viton?G, AL-EPDM
M15E Nitrile
M15BD Nitrile, EPDM, VitonRG, HNBR
TECHNICAL DATA
Pressure vessel codes, PED, ASME, pvcALS?
Mechanical design pressure (g) / temperature
FL pvcALS? 0.6 MPa / 130°C
FM PED, pvcALS? 1.0 MPa / 180°C
FG PED, pvcALS? 1.6 MPa / 180°C
FG ASME 150 psig / 356°F
FD PED, pvcALS? 3.0 MPa / 180°C
FD ASME 300 psig / 356°F
CONNECTIONS
FL pvcALS? Size 150 mm DIN/GB/GOST PN10,
ASME CI. 150, JIS 10K
FM PED Size 150 mm DIN 2501 PN16,
ASME CI. 150
FM pvcALS? Size 150 mm DIN/GB/GOST PN10,
ASME CI. 150, JIS 10K
FG PED Size 150 mm DIN 2501 PN16,
ASME CI. 150
FG pvcALS? Size 150 mm DIN/GB/GOST PN16,
ASME CI. 150, JIS 16K
FG ASME Size 6" ASME CI. 150
FD PED Size 150 mm DIN 2501 PN25,
ASME CI. 300
FD ASME Size 6" ASME CI. 300
Dimensions
Measurements mm (inch)
Type H W h
M15-FL 1815 (71 ?") 610 (24") 275 (10 ?")
M15-FM max. 1941 (76 ?") 610 (24") 275 (10 ?")
M15-FG max. 1941 (76 ?") 650 (25 ?") 275 (10 ?")
M15-FD max. 2036 (80") 650 (25 ?") 370 (14 ?")
Maximum heat transfer surface
390 m? (4200 sq. ft)
Particulars required for quotation
– Flow rates or heat load
– Temperature program
– Physical properties of liquids in question (if not wat
