压力开关(HDS-1-250-K-7-1-T19)

德国Bar-Control HDS/HDC/EDP压力开关 苏州德鲁夫总代理

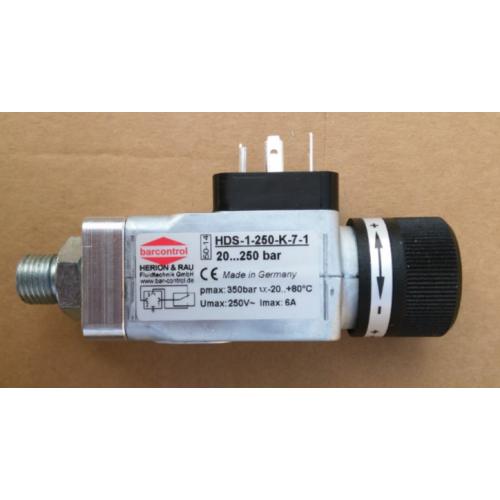

HDS-1-250-K-7-1-T19

HDS-1-200-K-7-1-T19

EDP-2-000-C-2-2

Technical Data

Fluid: compressed air, neutrale fluids/gases
Installation: over fluid connection
Fluid connection*: fixed male thread: G1/8“, G1/4", M10x1, 1/8NPT, 1/4NPT, R1/8
Mounting position: any
Pressure adjustment range*: -0.85 ... 16 bar – division see on page 4
Max. system pressure*: 60 bar
Repeatability: ±2% of full scale at room temperature
Hysteresis: see chart „Hysteresis“ on page 4
Switching cycles: > 1x10
Max. switching frequency: 100 cycles / min
Temperature range*: -20°C… +80°C
Vibration resistance: 10g (10 ... 2000Hz) sinus acc. to ISO 16750-3
Shock resistance: 30g, 14 ms shaped sinus acc. to DIN 40046, T7
Electrical connection:
Standard spade terminals 6.3x0.8
Ready made M12x1, cable output, customized
Switching element: snap action micro switch with self-cleaning pins
CE-mark: acc. to EU-standard 73/23/EWG
Protection class: IP00 acc. to DIN EN 60529 (readymade up to IP68)
Material:
Housing zinc plated steel, stainless steel on request
Membrane NBR, EPDM
Weight: 0.1 kg
