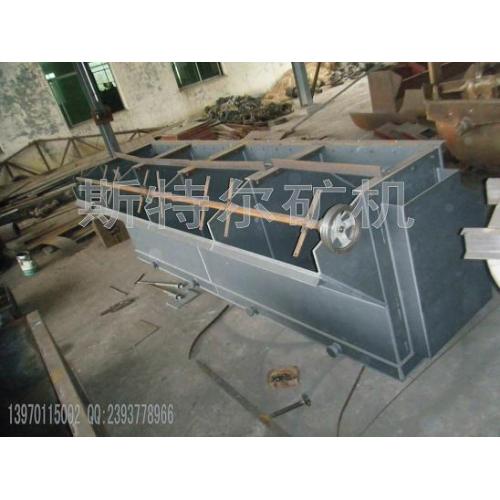

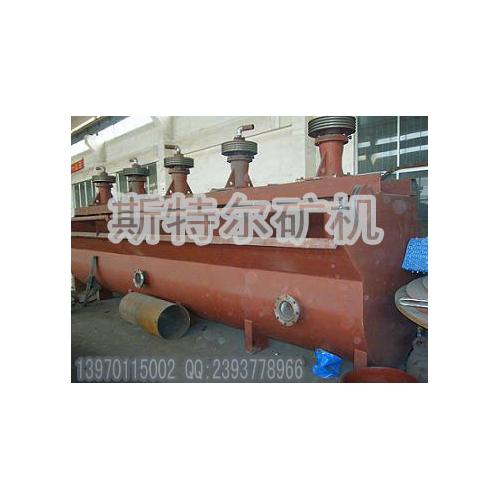

XJK、SF自吸气机械搅拌式浮选机 Mechanical agitating flotaion machine with auto air suction
该系列浮选机采用了结构新颖的前倾式槽体，双叶片水轮，配有导流管和假底装置，槽内矿浆按固定的流动方式进行上、下双循环，有利于粗粒矿物的悬浮，可自吸空气，自吸矿浆，不需泡沫泵。本产品由原地矿部***指定企业生产，执行行业标准。
New siructure of impeller is backwards inclined double impellers equipped with honeycomb duct and dummy bottom.Therefore ,the slurry in the tand will cycle upward and downward in a fixed flow manner,which is helpful to the suspension of those coarse particles .Airand slurry are naturally sucked without need for foam pump.
|
型号
规格
Model
|
容积Volume
|
叶轮直径Impeller Diameter
|
叶轮转速Impeller speed
|
处理量
Capacity
|
槽体尺寸Cell size
|
功率Power
|
重量Weighe
|
|
叶轮Impeller
|
刮板Scraper
|
|
m3
|
mm
|
r/min
|
m3
/min
|
mm
|
Kw
|
kg
|
|
XJK 2A
|
0.23
|
250
|
500
|
0.12-0.28
|
600/600/650
|
1.5
|
0.5
|
390
|
|
XJK 3A
|
0.35
|
300
|
483
|
0.18-0.4
|
700/700/700
|
2.2
|
1.1
|
426
|
|
XJK 4A
|
0.62
|
350
|
400
|
0.3-0.9
|
820/900/850
|
3
|
1.1
|
752
|
|
XJK 5A
|
1.1
|
500
|
330
|
0.6-1.6
|
1100/1100/1000
|
5.5
|
1.1
|
1208
|
|
XJK 6A
|
2.8
|
600
|
280
|
1.5-3.5
|
1750/1600/1100
|
11
|
1.1
|
2108
|
|
SF 4A
|
0.37
|
296
|
386
|
0.2-0.4
|
700/700/750
|
1.5
|
0.55
|
466
|
|
SF 5A
|
1.2
|
450
|
312
|
0.6-1.2
|
1100/1100/1100
|
5.5
|
1.1
|
1360
|
|
SF 6A
|
2.8
|
550
|
268
|
1.5-3.5
|
1700/1600/1150
|
11
|
1.5
|
2126
|
|
SF 7A
|
4
|
650
|
220
|
2-4
|
1850/2050/1200
|
15
|
1.5
|
2579
|
|
SF 8A
|
8
|
760
|
191
|
4-8
|
2200/2900/1400
|
30
|
1.5
|
4116
|
