给矿机技术参数
Technical Parameter of laboratory Feeder

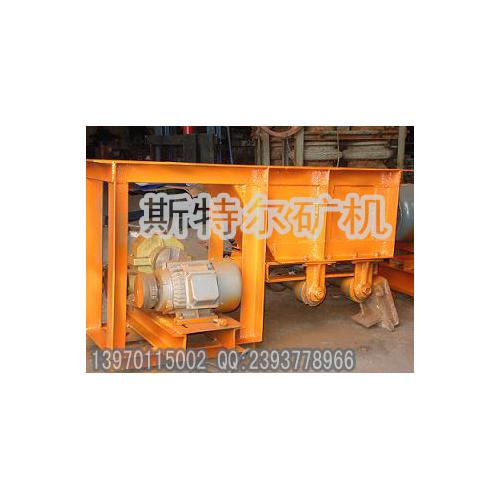

槽式给矿机和摆式给矿机适用选矿、煤炭、化工及其它部门，将颗粒状和块状物料由储料仓取出送给各种不同类型的受料装置，但不适宜输送精矿粉和其它粉状物料。
本机可作为球磨机及矿带式输送机连续均匀供给颗粒状物给料设。
Trough to the mining machine and the Pendulum feeder for mineral processing, coal, chemical industry and other sectors will be granular and massive materials sent out from the storage silos by a variety of different types of feed devices, but not suitable for conveying ore powder and other powder materials.
This machine can be used as ball mill and the mine belt conveyor continuous and uniform supply of granular material feed set
|
型号Model
|
单位
Uite
|
400/300槽式
|
600/500槽式
|
980/1240槽式
|
1000/1900槽式
|
1060/2900槽式
|
|
给料粒度Feed size
|
mm
|
50
|
205
|
300
|
300
|
350
|
|
槽底往复次数
Frequency bottom back and forth
|
r/min
|
18.5
|
18.9
|
24
|
27
|
30
|
|
曲柄行程Crank Stroke
|
mm
|
0-50
|
0-50
|
0-50
|
0-125
|
0-125
|
|
处理量Capacity
|
t/h
|
0-5
|
10-50
|
36-90
|
200-300
|
400-900
|
|
功率Power
|
kw
|
3
|
4
|
7.5
|
11
|
25-40
|
|
外形Overall dimensions
|
mm
|
2820/800/600
|
2700/900/850
|
3560/1000/1000
|
3900/1590/1350
|
4580/2950/1750
|
|
重量Weighe
|
kg
|
790
|
1050
|
1700
|
2690
|
3200
|
|
型号Model
|
单位
Uite
|
300/300摆式
|
400/400摆式
|
600/600摆式
|
|
给料粒度Feed size
|
mm
|
20
|
35
|
50
|
|
摆动次数Oscillation
Frequency
|
r/min
|
68
|
47
|
45.5
|
|
偏心轮行程Eccentric travel
|
mm
|
0-90
|
0-170
|
0-206
|
|
处理量Capacity
|
t/h
|
8
|
12
|
25
|
|
功率Power
|
kw
|
1.1
|
1.1
|
1.5
|
|
外形Overall dimensions
|
mm
|
1130/920/850
|
1070/550/560
|
1320/820/740
|
