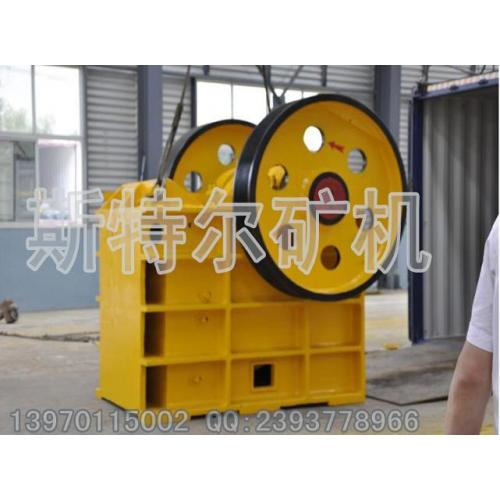

PE、PEX型颚式破碎机Coarse jaw crusher
PE、PEX系列破碎机广泛运用于矿山、冶炼、建材、公路、铁路、水利和化学工业等众多部门，粉碎搞压强度不超过350帕的各种物料。本产品由原地矿部***指定企业生产，执行行业标准。
该系列破碎机特点是：结构简单，工作可靠，操作维修方便，破碎比高达20-30，可以简化破碎流程，节省投资和生产费用，所破碎的产品粒度比较均匀，不会产生过粉碎现象。
This crusher is widely used in mining, metallurgical industry, building material, highway, railway, water conservancy and chemical industries. Various material with compressive resistance less than 350Mpa can be crushed.
This series of crusher features are: simple structure, reliable operation and maintenance easy, broken up more than 20-30, you can simplify the crushing process, save investment and production costs, the broken particle size more uniform, will not have been crushing the phenomenon of
|
型号Model
|
处理量Capacity
|
给料口尺寸Inlet size
|
排料口尺寸Output size
|
给料粒度Feed size
|
功率Power
|
重量Weight
|
|
|
t/h
|
mm
|
mm
|
mm
|
kw
|
t
|
|
PE400/600
|
34
|
400/600
|
40-100
|
340
|
30
|
6.5
|
|
PE500/750
|
52
|
500/750
|
50-100
|
425
|
55
|
10.3
|
|
PE600/900
|
75
|
600/900
|
65-160
|
500
|
55
|
15.5
|
|
PE750/1060
|
130
|
750/1060
|
80-140
|
630
|
110
|
28
|
|
PE900/1060
|
250
|
900/1060
|
230-290
|
680
|
110
|
31
|
|
PEX150/750
|
16
|
150/750
|
18-48
|
120
|
15
|
3.3
|
|
PEX200/1000
|
23
|
200/1000
|
20-55
|
160
|
22
|
6.3
|
|
PEX250/750
|
22
|
250/750
|
25-60
|
210
|
22
|
5
|
|
PEX250/1000
|
32
|
250/1000
|
25-60
|
210
|
30
|
6.6
|
|
PEX250/1200
|
38
|
250/1200
|
25-60
|
210
|
37
|
7.8
|
