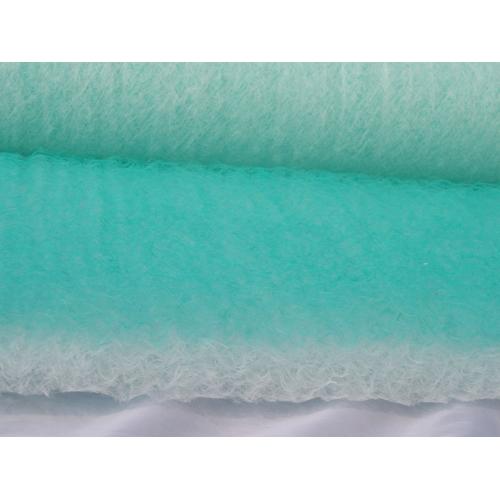

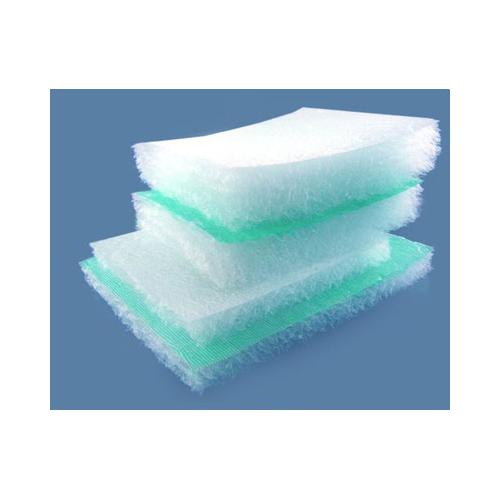

漆雾过滤棉
产品特性:
* 采用玻璃长纤维以非织物方式制成,透风量大,阻力小,对漆雾捕尘效率佳;
* 高强度的玻璃纤维递增结构; 迎风面为绿色, 出风面为白色;
* 低压缩性能保持漆雾毡外型不变,使其过滤纤维完全有利于储存油雾灰尘;
* 耐燃性,可耐温170℃;
* 压缩真空包装在运输上可节约运费及储存空间，放松后仍可恢复原来状态；
用途:
喷漆房及喷漆设备系统中漆雾的诱捕，厨房、化工系统油烟的吸附，***终使排放气体达到 环保要求。
Floor filter
Specialty:
*processed by long fiberglass fiber in non-woven way, large ventilation quantity and low resistance can keep better filter effect.
*The high performance fiber with gradual increasing density toward pure air, Windward side is green, leeward side is white.
*Low compressibility keeps its shape and benefit for capture paint, mist, soot, etc.
* Temperature resistance: 170℃.
*you can compress in transportation, when release it can recover immediately.
Application:
Applied in many industries, such as painting industry, air conditioning, electronic, pharmaceutical factory, food sanitation etc.
技术参数: Specification
|
型 号Type
|
自由状态厚度Thickness
(mm)
|
不同风速(m/s)时的阻力Pa
|
不同粒径下的平均效率（%）
|
容尘量 Dust Holding Capacity
(g/m2)
|
耐温度Temperature Resistance
|
|
1.3
|
2.6
|
3.9
|
≥2μm
|
≥5μm
|
≥10μm
|
|
PA-50
|
50
|
15
|
30
|
45
|
35
|
70
|
80
|
1850
|
170℃
|
|
PA-60
|
60
|
20
|
35
|
50
|
40
|
75
|
85
|
2100
|
170℃
|
|
PA-100
|
100
|
25
|
40
|
55
|
60
|
80
|
90
|
3200
|
170℃
|
|
标准
尺寸
|
0.8/1/2x20m
|
注:可根据需要定制不同规格. Note: Special Size Available Upon Request.
