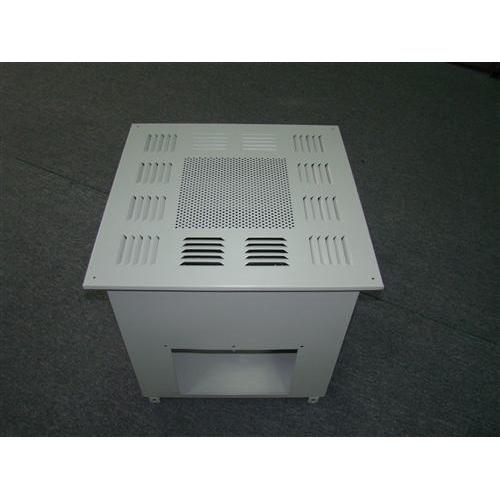

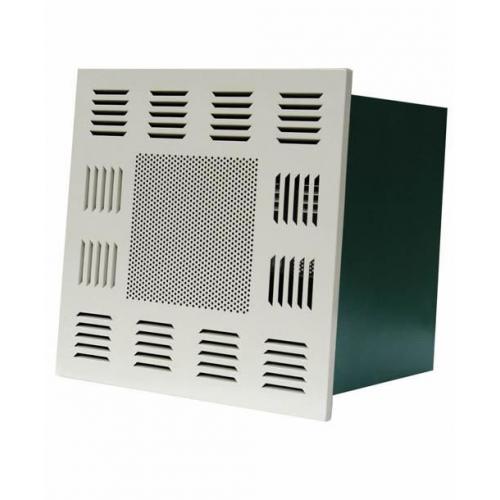

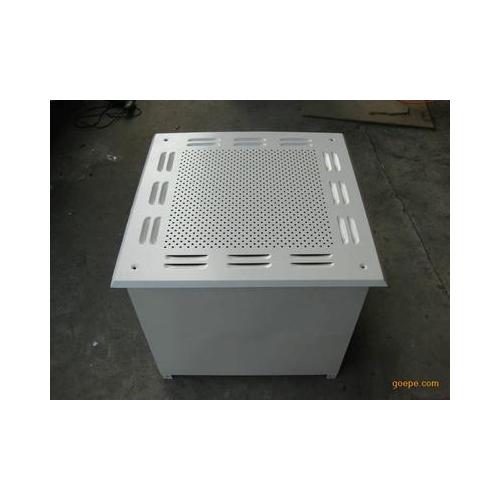

高效送风口
产品特性:
* 高效送风口的箱体采用优质冷扎钢板制造，外表面静电喷塑处理，配散流板, 保证气流的喷射速度，防止涡流的产生;
* 结构紧凑，密封性能可靠，进风方式有侧进风和顶进风，法兰口有方形和圆形两种结构;
* 每台高效送风口在出厂前均经过逐台性能测试，保证高效送风口的性能指标;
用途:
适用于电子，半导体，光学，生物工业，及其他空气污染要求严格控制场合.
HEPA filter box
Specialty:
* The frame is advanced baking cold rolled sheet with surface static blasting painting treatment which can guarantee the air speed avoiding eddy flow.
* Compact construction assures HEPA filter box advanced sealing performance. There are side air intake way and top air intake way available, the header is square or round.
* If the clean room designed to compact construction for the height strict, ceiling filter module is the best choose.
* Each HEPA filter box is individually tested via PSL particle, Using MPPS (DOP Test) laser particle counting device to measure overall efficiency of the filter, special requirement is available.
Application:
* HEPA filter box is designed for electron, semiconductor, optics and bio-industry which are strict with airflow.
技术参数: Specification
|
型号Type
|
箱体安转尺寸Cabinet Installation Size(mm)
|
过滤器尺寸Filter Size(mm)
|
额定风量Rated Airflow（m3/h）
|
进风管尺寸Air Inlet Pipe Size(mm)
|
风管连接尺寸(mm)Airstream Pipe Connection Size
|
箱体外形
尺寸Cabinet Overall Size(mm)
|
|
侧面送风Side Air Blowing
|
顶面送风Vertical Air Bolwing
|
|
FX-GH-320
|
AR-GH-320D
|
370x370x530
|
320x320x220
|
500
|
200x200
|
250x250
|
425x425x570
|
|
FX -GH-484
|
AR-GH-484D
|
534x534x570
|
484x484x220
|
1000
|
320x200
|
375x250
|
584x584x570
|
|
FX -GH-610
|
AR-GH-610D
|
660x660x550
|
610x610x150
|
1000
|
320x250
|
370x300
|
710x710x550
|
|
FX -GH-630
|
AR-GH-630D
|
680x680x620
|
630x630x220
|
1500
|
320x250
|
370x300
|
730x730x620
|
|
FX -GH-915
|
AR-GH-915D
|
965x660x520
|
915x610x150
|
1500
|
500x250
|
550x300
|
1020x715x560
|
|
FX-GH-1220
|
AR-GH-1220D
|
1270x660x510
|
1220x610x150
|
2000
|
500x200
|
550x250
|
1320x710x510
|
注:可根据需要定制不同规格. Note: Special Size Available Upon Request.
